All trigger sequences require that input channels CH1...4 are set as trigger sources for
all conditions. All other input sources are disabled. Trigger sequences are not available
if one the following trigger types is set as A-trigger:
●
Setup & Hold
●
TV
●
NFC
●
CDR
For the zone trigger, more trigger sequences are available, see Chapter 6.9, "Zone trig-
ger", on page 249. Zone trigger requires option R&S RTP-K19.
6.8.1 Sequence setup

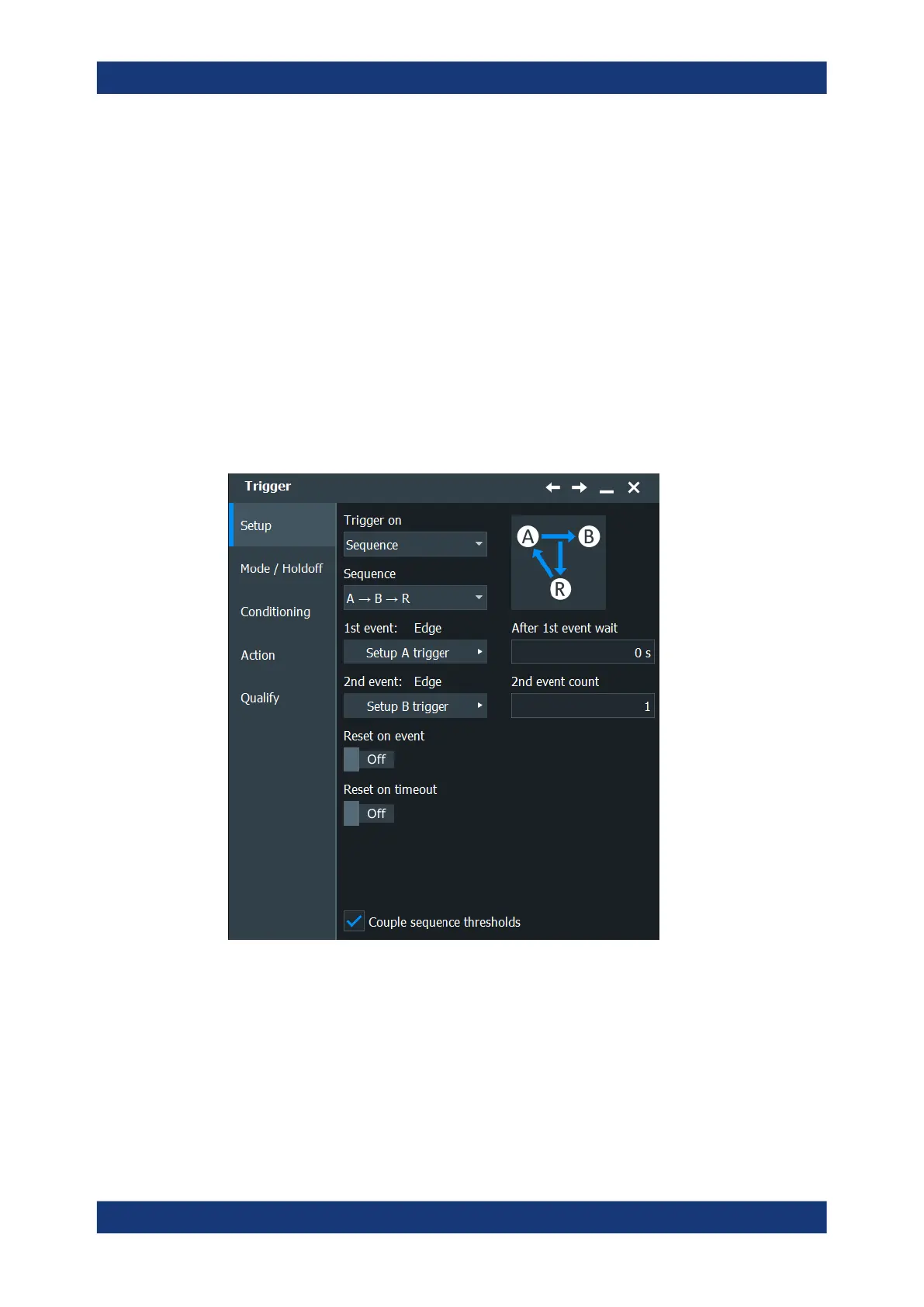

Access: "Menu">"Trigger" > "Setup" tab > "Trigger on" = "Sequence"
The B-trigger is the second condition of the trigger sequence. You can configure a
delay between the A- and B-trigger, and define a number of fulfilled B-trigger conditions
to be ignored. The B-trigger condition is configured in the same way as the A-trigger.
The instrument disables settings that do not fit the previous settings in the sequence.
Sequence
