Protocol analysis
R&S
®
RTP
588User Manual 1337.9952.02 ─ 12
2. At the left hand-side, select the vertical tab of the bus you want to set up.
3. Select the tab of the bus you want to set up, for example "SB1".
4. Tap the "Protocol" button and select the protocol: "LIN".
5. Set the "Data source".
6. Set the logical thresholds.
7. Set the "LIN standard", "Bit rate" and "Polarity" according to your signal.
8. Enable "Decode".
13.6.3 LIN trigger
13.6.3.1 LIN trigger settings

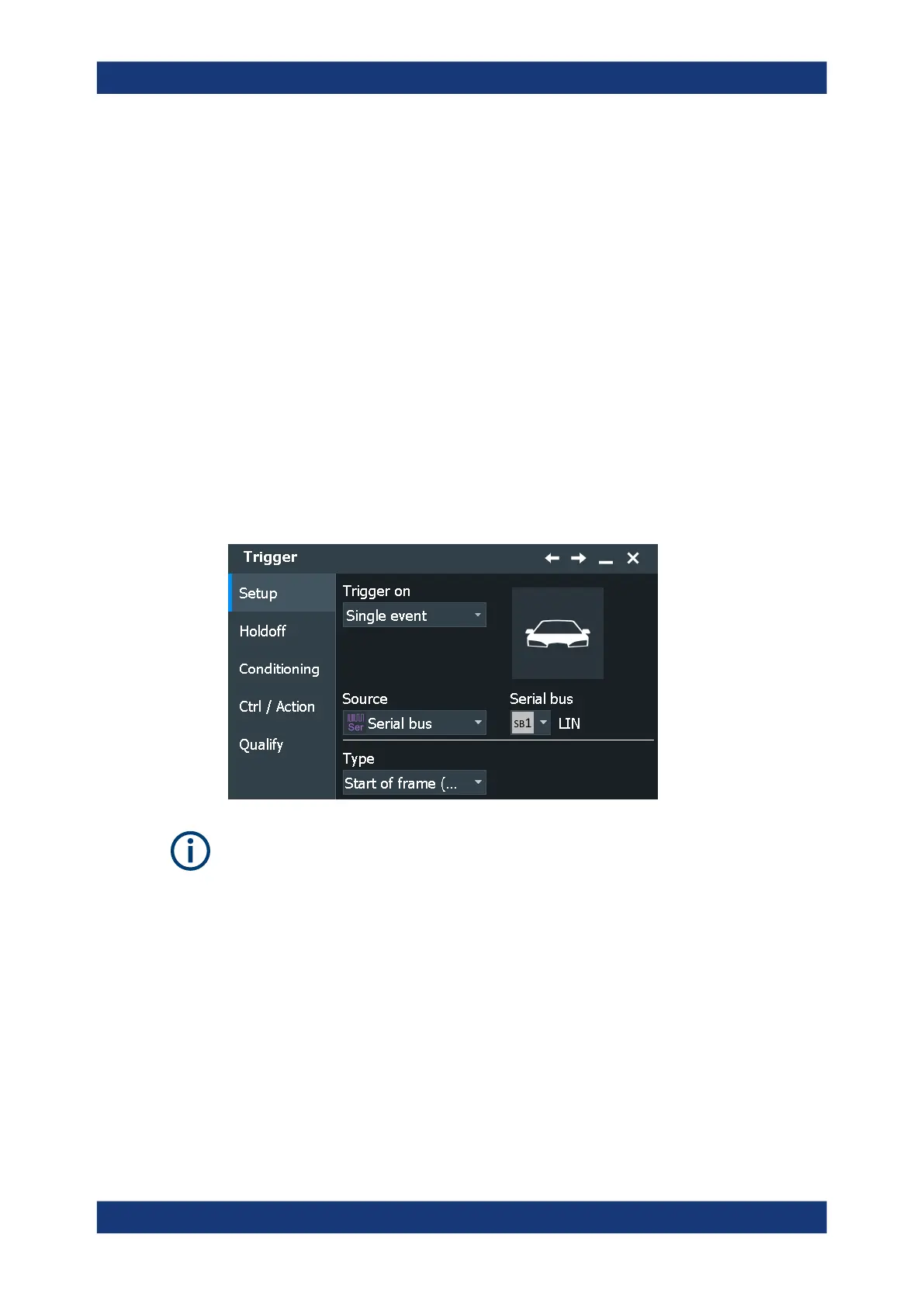

Access: [Protocol] > "Shortcuts" tab > "Setup trigger"
Make sure that:
●
In the [Protocol] > "Setup" tab:
– The correct "Protocol" is selected.
– The data sources of the serial bus are channel signals.
●
In the "Trigger" > "Setup" tab:
– The "Trigger on" = "Single event"
– The trigger "Source" = "Serial bus".
– The correct "Serial bus" is selected.
Trigger type
Selects the trigger type for LIN analysis.
"Start of frame
(Sync)"
Triggers on the stop bit of the sync field.
LIN (option R&S RTP-K3)
