13.16.3 8b/10b trigger
If you need information on how to get started with triggering on 8b/10b signals, see
Chapter 13.16.3.2, "Triggering on 8b/10b data", on page 783. Otherwise proceed with
the 8b/10b trigger settings.
13.16.3.1 8b/10b trigger setup

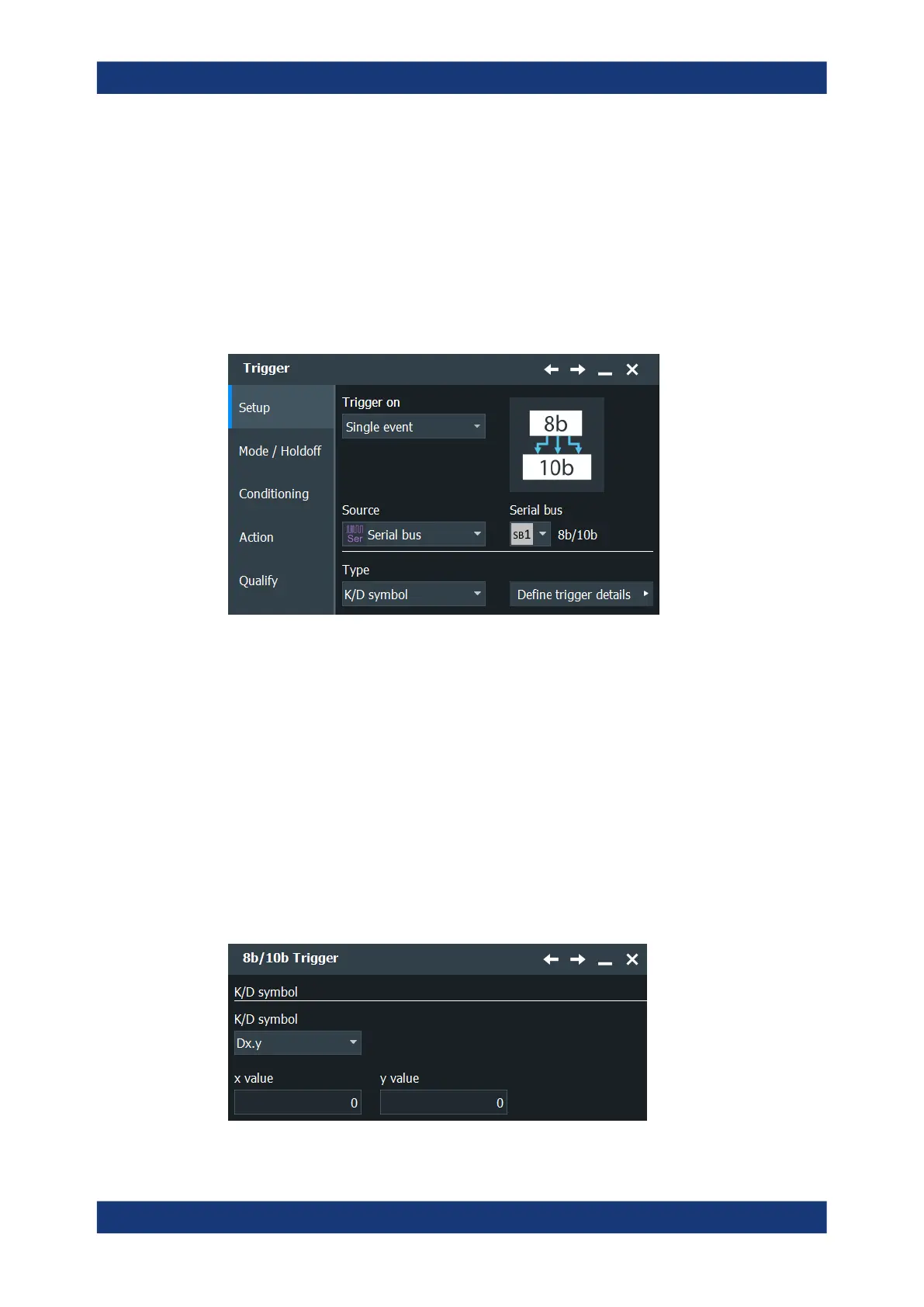

Access: [Protocol] > "Shortcuts" tab > "Setup trigger"
Type 8b/10b
Selects the type of condition to be triggered on. Available are:
●
"K/D symbol"
●
"8 bit pattern"
●
"10 bit pattern"
●
"Expression"
●
"Error Condition"
Press "Define trigger details" to open a dialog for defining trigger type dependent set-
tings.
Remote command:
TRIGger<m>:EBTB:STYPe on page 1981
K/D symbol
Selects the data character (Dx.y) or control character to be triggered on.
8b/10b (option R&S RTP-K52)
