13.19.5 Search on decoded USB 3.1 data
Using the search functionality, you can find various events in the decoded data. You
can find the same events that you can trigger on, and even many more, since several
event types can also be combined.
Before you can start the search, you have to configure the bus correctly and acquire
decoded data.
To search on decoded data, set the search source to "SerBus" for the configured proto-
col.
For general information on how to handle the search functionality, see Chapter 11,
"Search functions", on page 448.
If you need information on how to get started with searching USB 3.1 data, see Chap-
ter 13.19.5.3, "Searching USB 3.1 data", on page 848. Otherwise proceed with the
USB 3.1 search setup.
13.19.5.1 USB 3.1 search setup
Access: [Protocol] > "Shortcuts" tab > "Setup search"
Search criteria

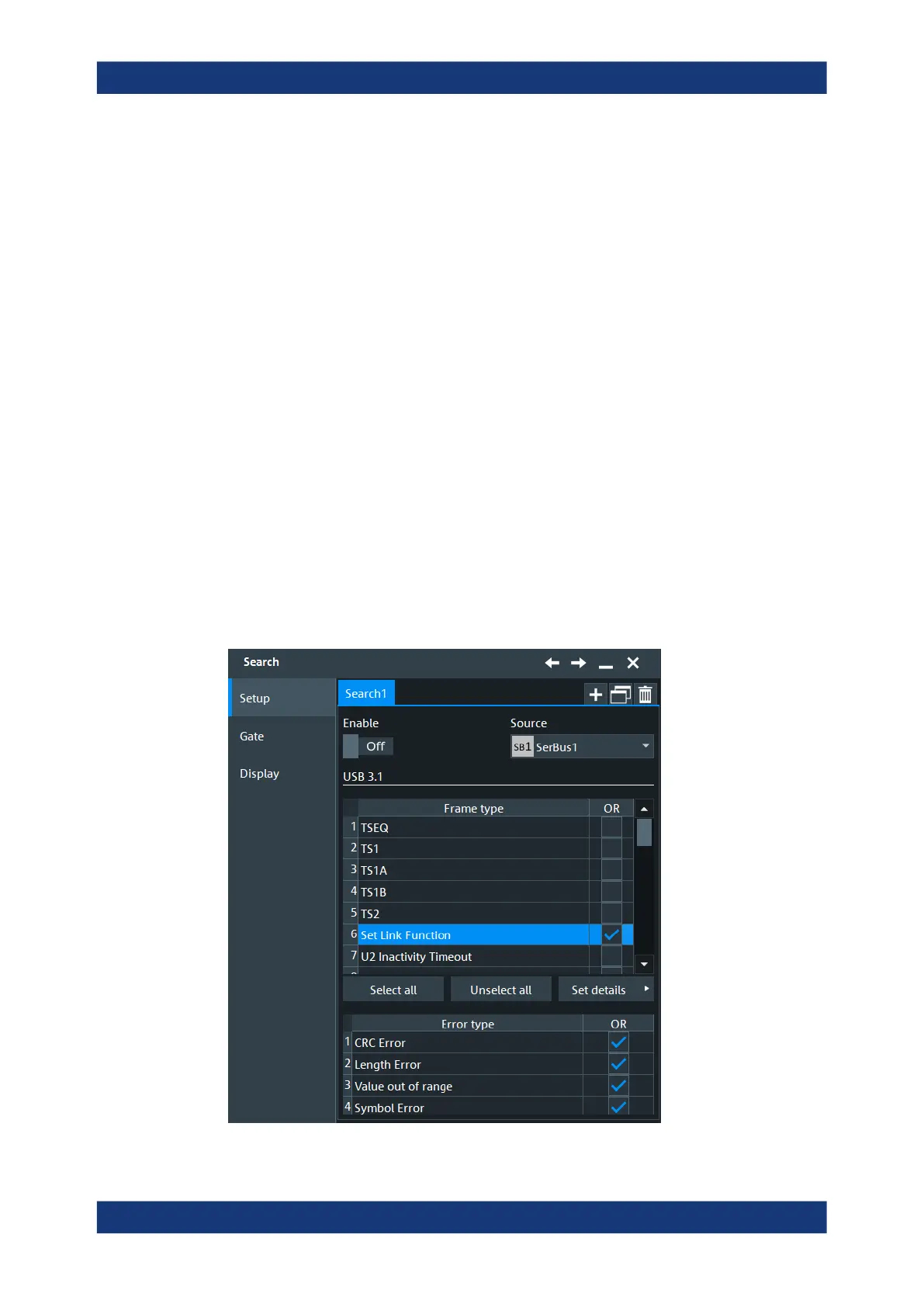

Use the "Search criteria" dialog to define the search type. If you search for frame con-
tent, define the frame type in which data is to be searched.
USB 3.1 (option R&S RTP-K61/K62)
