6.3.1 Basic trigger settings

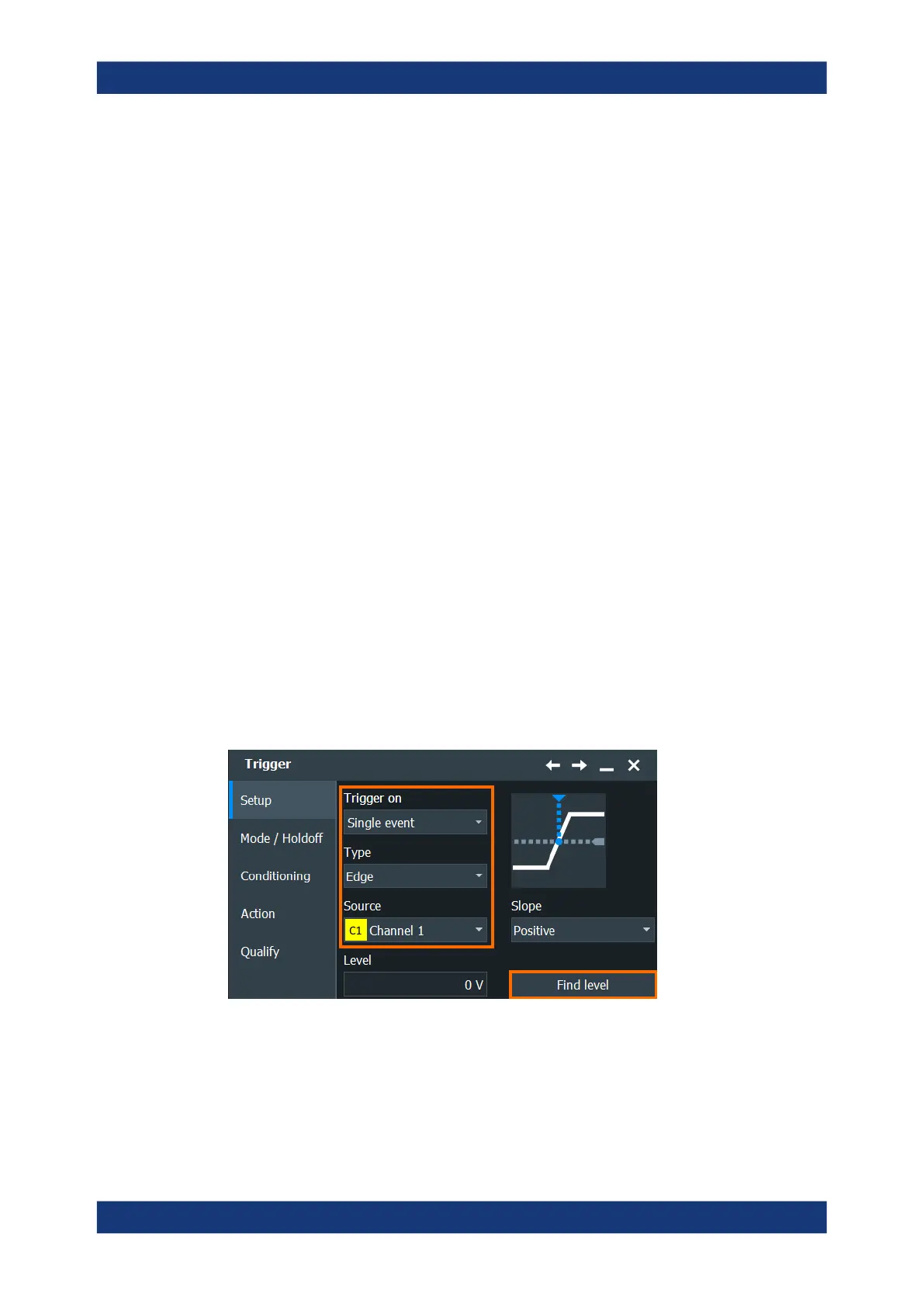

"Setup"Access: "Menu" > "Trigger" > "Setup" tab
The basic trigger settings are the trigger source and the trigger type, including the trig-
ger level. These settings are specific for each condition in a trigger sequence. To set
the trigger level automatically, use "Find level".
Depending on the trigger type, additional settings are available. They are explained in
the trigger-type specific sections.
Trigger on
Selects, if you want to trigger on a single event, or on a series of events.
Remote command:
TRIGger<m>:EVENt on page 1254
Trigger types
