Signals with longer idle phases might not find horizontal adjustment.
●
On duplex signals, different forward/reverse amplitudes can fail to determine
thresholds.
13.1.3 Display

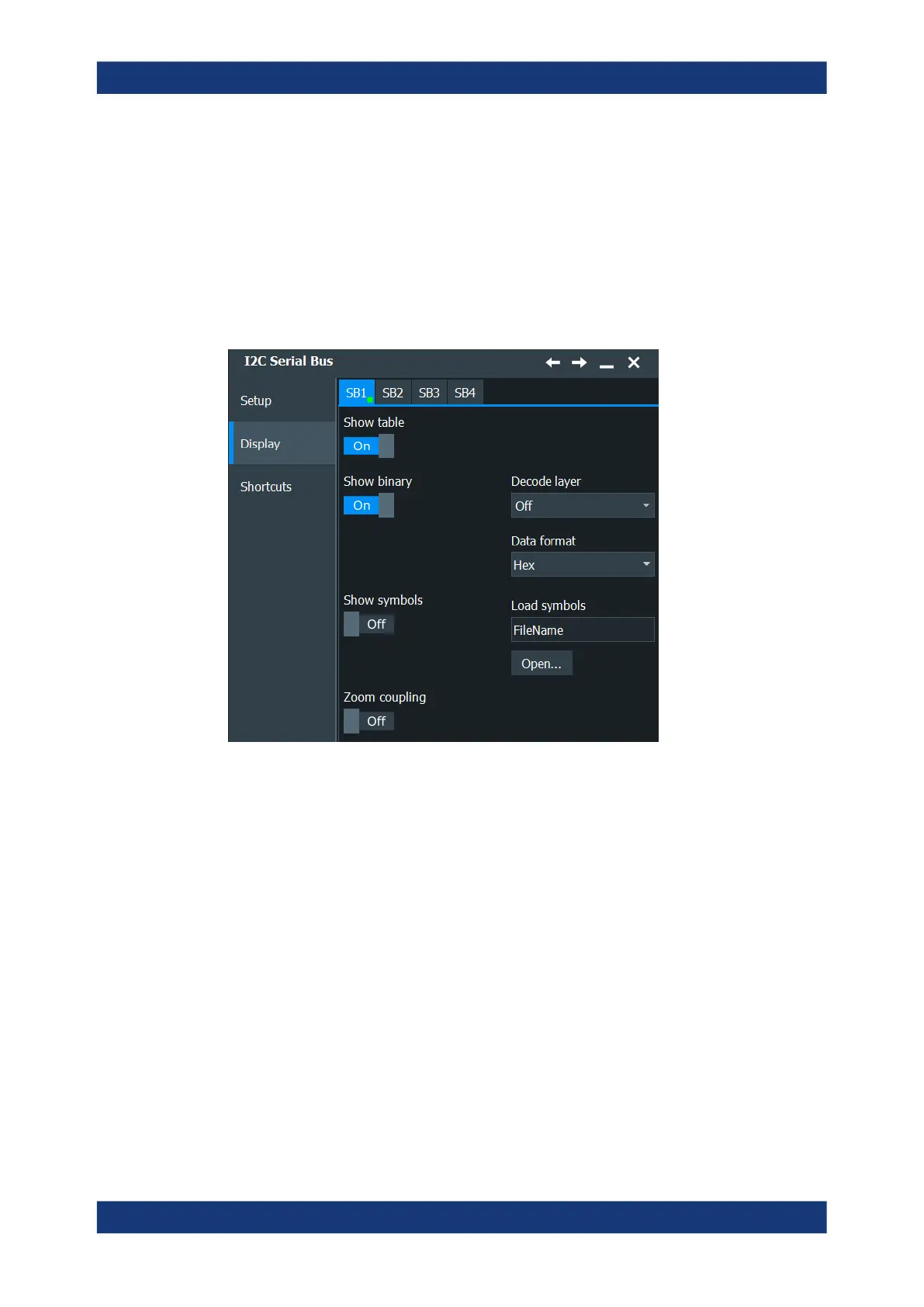

For all protocols, you can select to display the decoded signal as a table and to show
the binary signal on the screen.
For some protocols, the result table provides a button to show the details of the
selected frame.
Label Lists
For all protocols using ID or address identification, it is possible to create label lists
containing addresses or IDs, a symbolic name for each node (symbolic label), and
some protocol-specific information.
You can load label lists, and activate its usage for decoding. As a result, an additional
"Label" column appears in the "Decode results" table, containing the symbolic label.
The frame captions of the decoded signal show the symbolic label instead of the ID or
address values. Hence it is easy to identify the messages of the different bus nodes.
You can also use the label list to trigger on an identifier or address. Instead of entering
the value, you select the name, which is defined in the label list.
Show table
Opens a table with decoded data of the serial signal. The function requires the option
for the analyzed protocol.
Basics of protocol analysis
