Protocol analysis
R&S
®
RTP
908User Manual 1337.9952.02 ─ 12

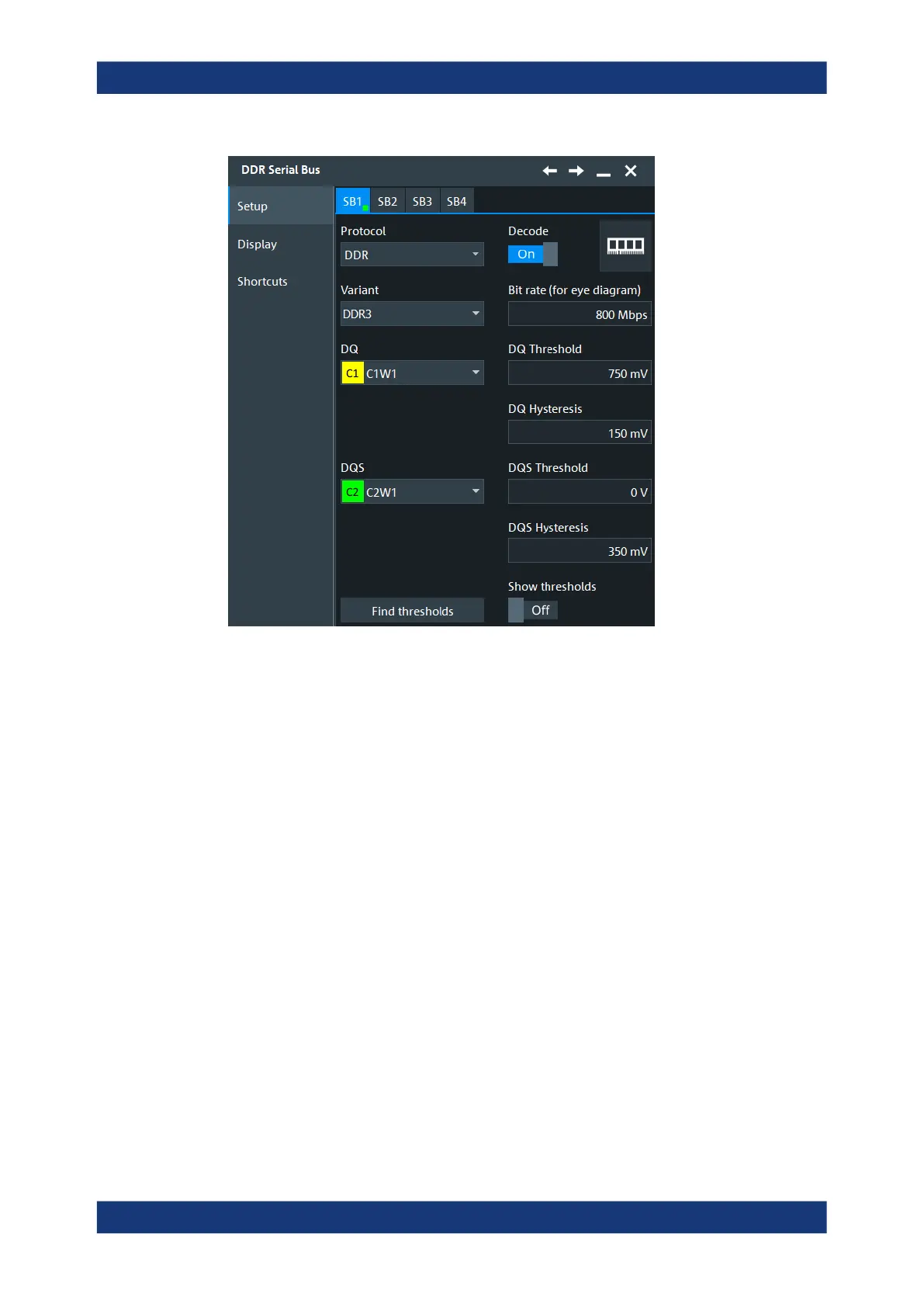

See also: Chapter 13.1.1, "Setup - general settings", on page 512
Variant
Selects the DDR standard.
"DDR3"
Requires option R&S RTP-K91.
"DDR4"
Requires option R&S RTP-K93.
Remote command:
BUS<m>:DDR:STANdard on page 2169
DQ
Sets the channel for the data output signal.
You can select analog channels "C1" to "C4", and also active math and reference
waveforms as source.
Remote command:
BUS<m>:DDR:DATA:SOURce on page 2170
DQS
Sets the channel for the data strobe signal.
You can select analog channels "C1" to "C4", and also active math and reference
waveforms as source.
Remote command:
BUS<m>:DDR:STRBe:SOURce on page 2170
DDR (option R&S
RTP-K91/K93 )
