Instrument setup
R&S
®
RTP
91User Manual 1337.9952.02 ─ 12

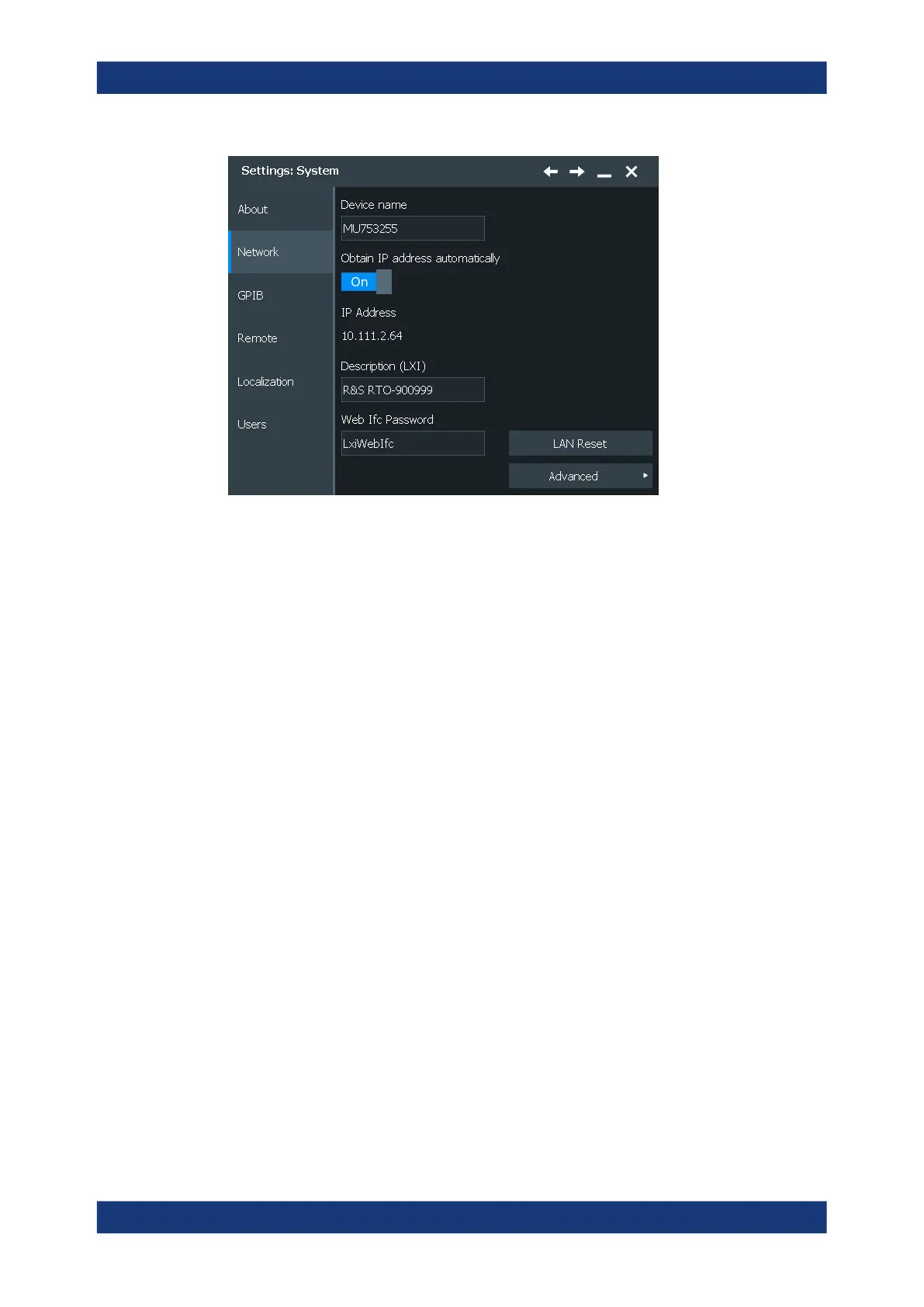

Device name
Indicates the currently defined computer name, the defined IP address and DHCP
address enabling. These values are required to configure the instrument for work in a
network.
NOTICE! Risk of network problems. All parameters can be edited here; however,
beware that changing the device name has major effects in a network. For details, see
Chapter 21.2, "Setting up a network (LAN) connection", on page 1092.
Remote command:
DIAGnostic:SERVice:COMPutername on page 1158
Obtain IP address automatically
If enabled, the IP address of the oscilloscope is obatained automatically.
IP Address
Indicates the currently defined computer name, the defined IP address and DHCP
address enabling. These values are required to configure the instrument for work in a
network.
Description (LXI)
Instrument description of the R&S RTP.
Web Ifc Password
Password for LAN configuration. The default password is LxiWebIfc.
LAN Reset
Resets the LAN configuration to its default settings using the network configuration
reset mechanism (LCI) for the instrument. The following parameters are reset:
System settings
