RM0008 General-purpose timer (TIMx)

279/690

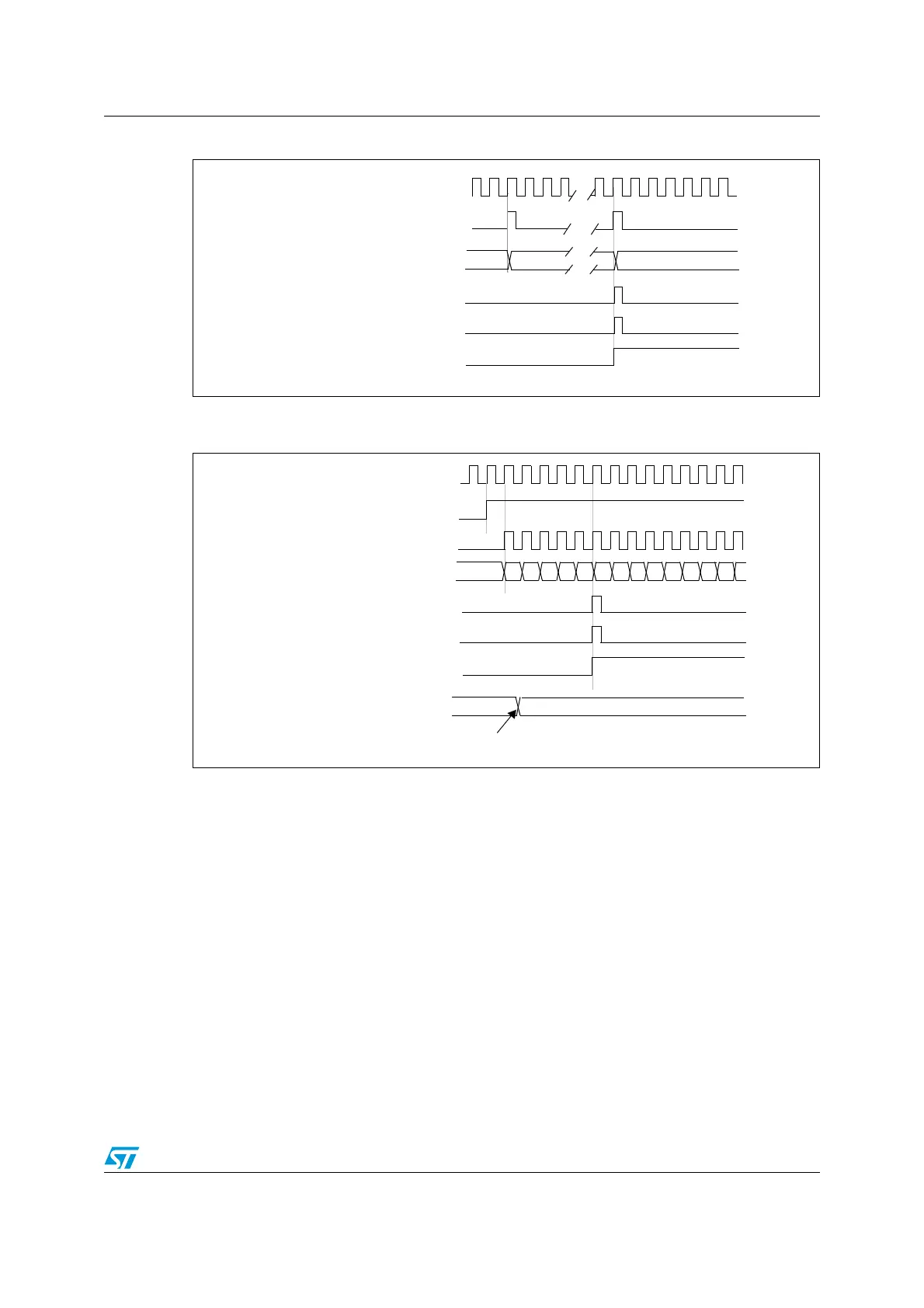

Figure 101. Counter timing diagram, internal clock divided by N

Figure 102. Counter timing diagram, Update event when ARPE=0 (TIMx_ARR not

preloaded)

Timer clock = CK_CNT

Counter register

Update interrupt flag (UIF)

Counter overflow

Update event (UEV)

CK_INT

CNT_EN

Timer clock = CK_CNT

Counter register

Update interrupt flag (UIF)

Counter overflow

Update event (UEV)

01 02 03 04 05 06 0732 33 34 35 3631

Auto-reload register

FF 36

Write a new value in TIMx_ARR

CK_INT
