General-purpose timer (TIMx) RM0008
304/690

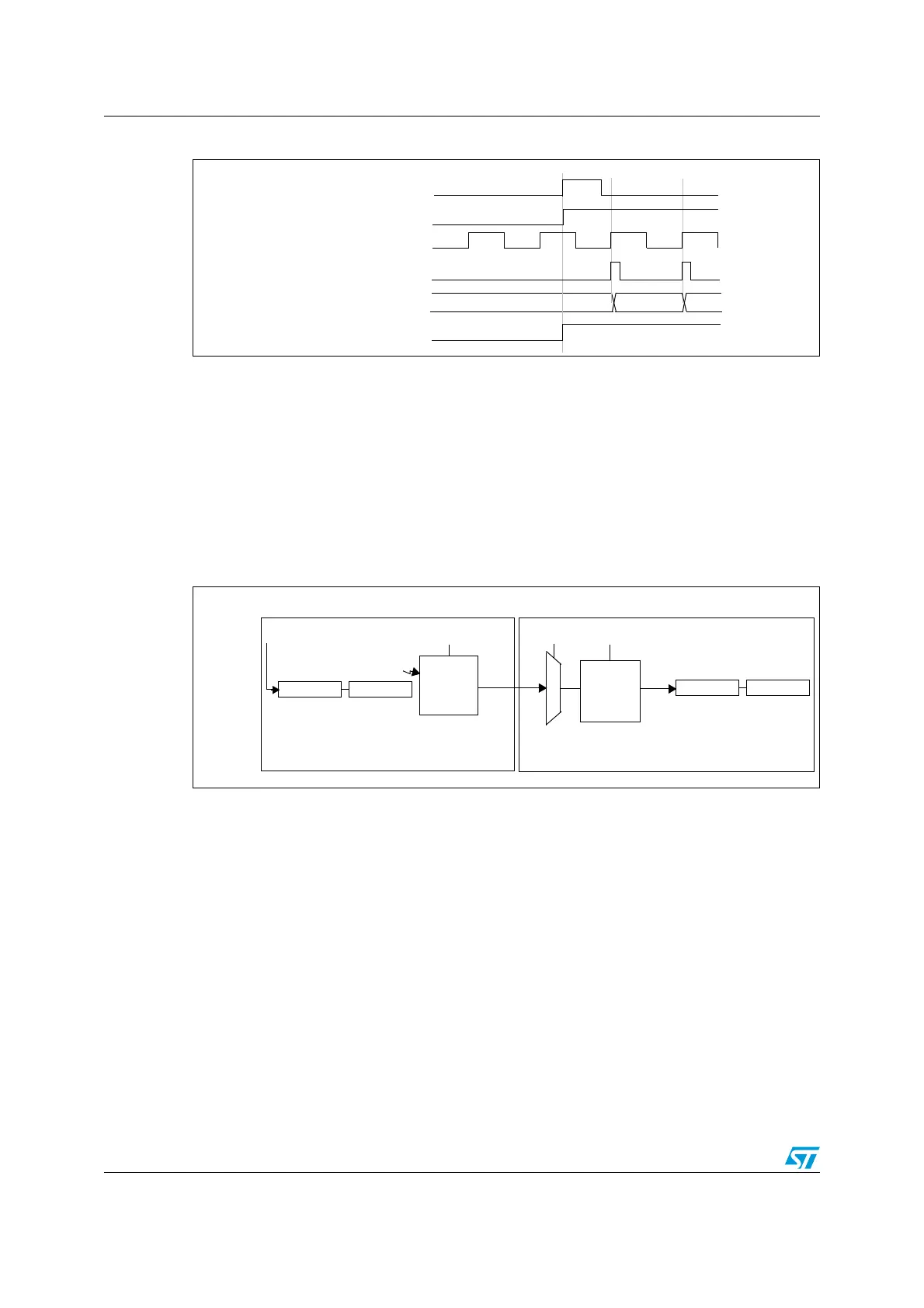

Figure 134. Control circuit in external clock mode 2 + trigger mode
13.3.15 Timer synchronization
The TIMx timers are linked together internally for timer synchronization or chaining. When
one Timer is configured in Master Mode, it can reset, start, stop or clock the counter of
another Timer configured in Slave Mode.
The following figure presents an overview of the trigger selection and the master mode
selection blocks.
Using one timer as prescaler for the another
Figure 135. Master/Slave timer example
For example, you can configure Timer 1 to act as a prescaler for Timer 2. Refer to
Figure 135. To do this:
● Configure Timer 1 in master mode so that it outputs a periodic trigger signal on each
update event UEV. If you write MMS=010 in the TIM1_CR2 register, a rising edge is
output on TRGO1 each time an update event is generated.
● To connect the TRGO1 output of Timer 1 to Timer 2, Timer 2 must be configured in
slave mode using ITR1 as internal trigger. You select this through the TS bits in the
TIM2_SMCR register (writing TS=000).
● Then you put the slave mode controller in external clock mode 1 (write SMS=111 in the
TIM2_SMCR register). This causes Timer 2 to be clocked by the rising edge of the
periodic Timer 1 trigger signal (which correspond to the timer 1 counter overflow).
● Finally both timers must be enabled by setting their respective CEN bits (TIMx_CR1
register).
Note: If OCx is selected on Timer 1 as trigger output (MMS=1xx), its rising edge is used to clock
the counter of timer 2.
Counter clock = CK_CNT = CK_PSC
Counter register
35 3634
ETR
CEN/CNT_EN
TIF
TI1
TRGO1
UEV
ITR1
Prescaler
Counter
SMSTSMMS
TIMER 1 TIMER 2
Master
mode
control
Slave
mode
control
CK_PSC
Prescaler
Counter
Clock
Input
selection
trigger
