TROUBLESHOOTING
Sysmex SF-3000 Operator's Manual -- Revised September 1995 8-69
3.4 Test PDA PCB
Use this program to test whether the PDA circuit boards are operating correctly.
(1) Bring the Test screen by pressing [Mainte.] and then [Test] keypads (Refer to
Section 3.1 in this chapter).
(2) Press the [PDA] keypad from the Test screen. The message "Press Start Switch"
will appear.
(3) Press the Start Switch. The PDA board check will begin. The test will complete in
approx. 10 seconds.
The "PDA Error" message appears in the system status area if there is abnormality
in the PDA circuits. Stop the alarm by pressing [Alarm Reset] key and contact
your Sysmex service representative.
(4) Press [Return] to end the test program. The Maintenance second menu appears.
(5) Press [Return] to exit the Maintenance program. The PDA test result is displayed
in the graphic screen. The test result is indicated in the ID No. area.
"PDA-CHK-OK" signifies that the PDA circuits are normal.
"PDA-CHK-NG" signifies that there is abnormality in the PDA analysis circuits.
250fL 40fL
WBC ---.-- [x10 3 /uL]
NEUT ---.-- ---.- [%]
LYMPH ---.-- ---.- [%]
MONO ---.-- ---.- [%]
EO ---.-- ---.- [%]
BASO ---.-- ---.- [%]
WBC Flag
RBC Flag
PLT Flag
RBC --.-- [x10 6 /uL]
HGB ---.- [g/dL]
HCT ---.- [%]
MCV ---.- [fL]
MCH ---.- [pg]
MCHC ---.- [g/dL]
RDW-SD ---.- [fL]
RDW-CV ---.- [%]
PLT ---- [x10
3 /uL]
PDW ---.- [fL]
MPV ---.- [fL]
P-LCR ---.- [%]
Sysmex
DP:1234567890123
XM HC GP DP SU
Ready
Manual Mode Next No.1234567890123
Sampler
Return
Last
NO. PDA-CHECK-OK 1995/10/25 14:20 R: 0000-00

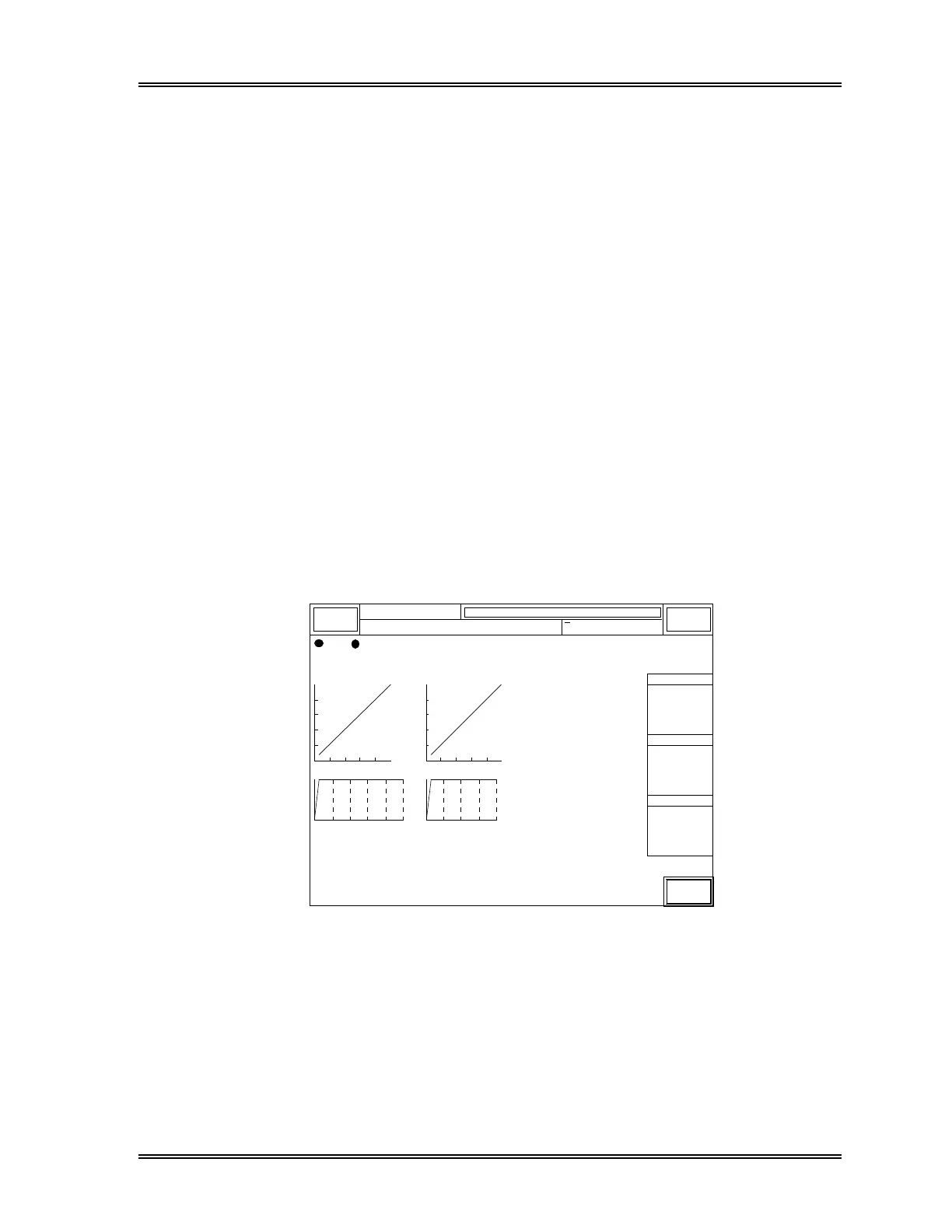

Figure 8-13: PDA Check Screen
