2
nd
Edition - Rev 0
SUPPLEMENT SG-1
CHAPTER 34 - NAVIGATION
Page 18
LRU FAILURE INDICATIONS ON THE SYSTEM STATUS PAGE (NORMAL
MODE)
The System Status Page (normal mode) can be used to help identify a faulty LRU. The
System Status Page displays information about device connectivity and system data-
bases. Green checks indicate active LRUs, red x’s indicate failed LRUs. Replace any
LRU which indicates “FAIL” status.

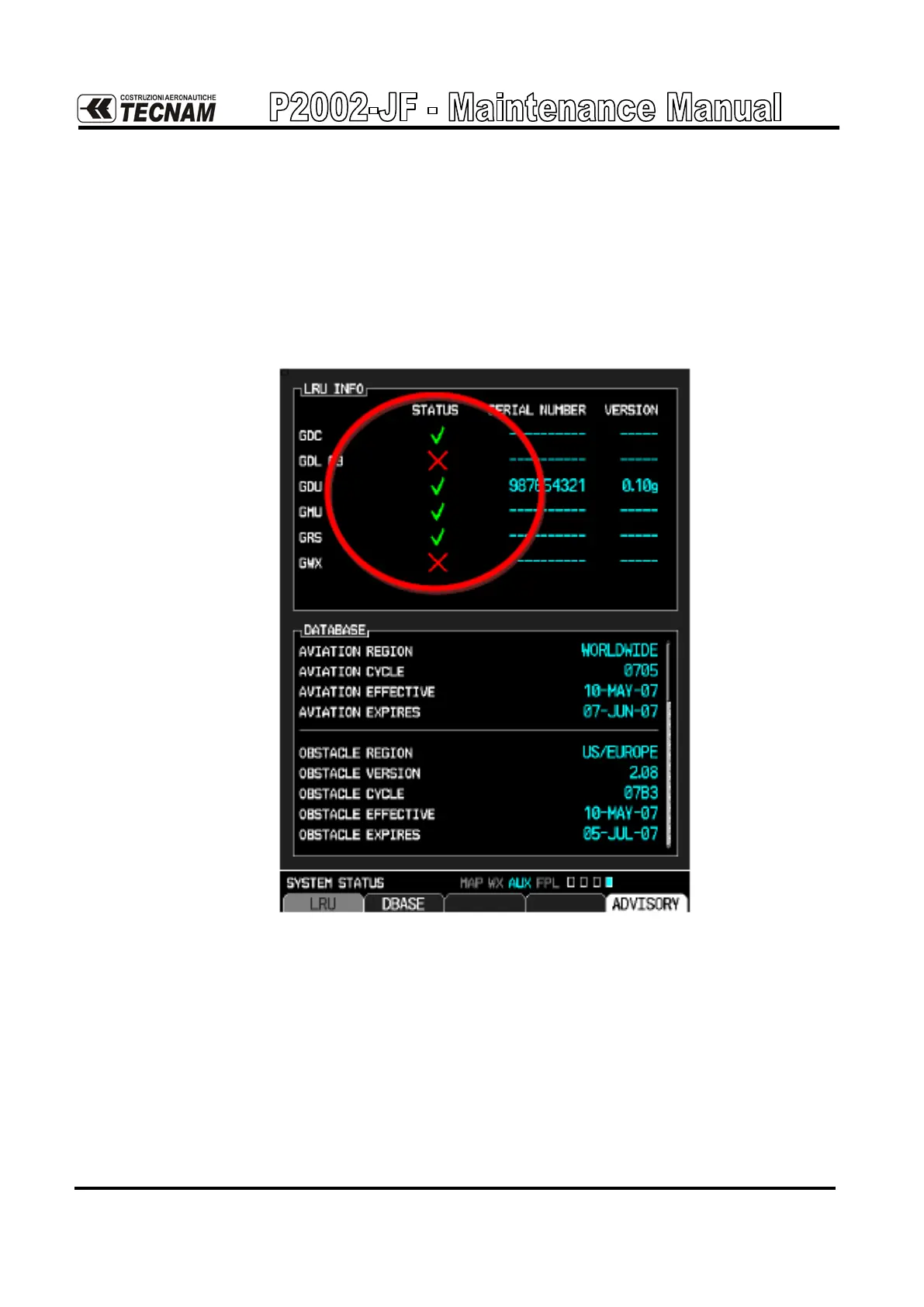

System Status Page
