SYSTEM STATUS PAGE (CONFIGURATION MODE)
The System Status Page displays system LRU information. Enter system configuration
mode by applying power to GDU 620 while holding the ENT key. The System Status
Page is displayed on the left display while the system is operating in configuration
mode.
The devices online status indicators are as follows:
• Green: the LRU status is OK
• Red: the LRU status is FAIL
• Black: the LRU status is TIMEOUT
Replace any LRU which indicates “FAIL” status.

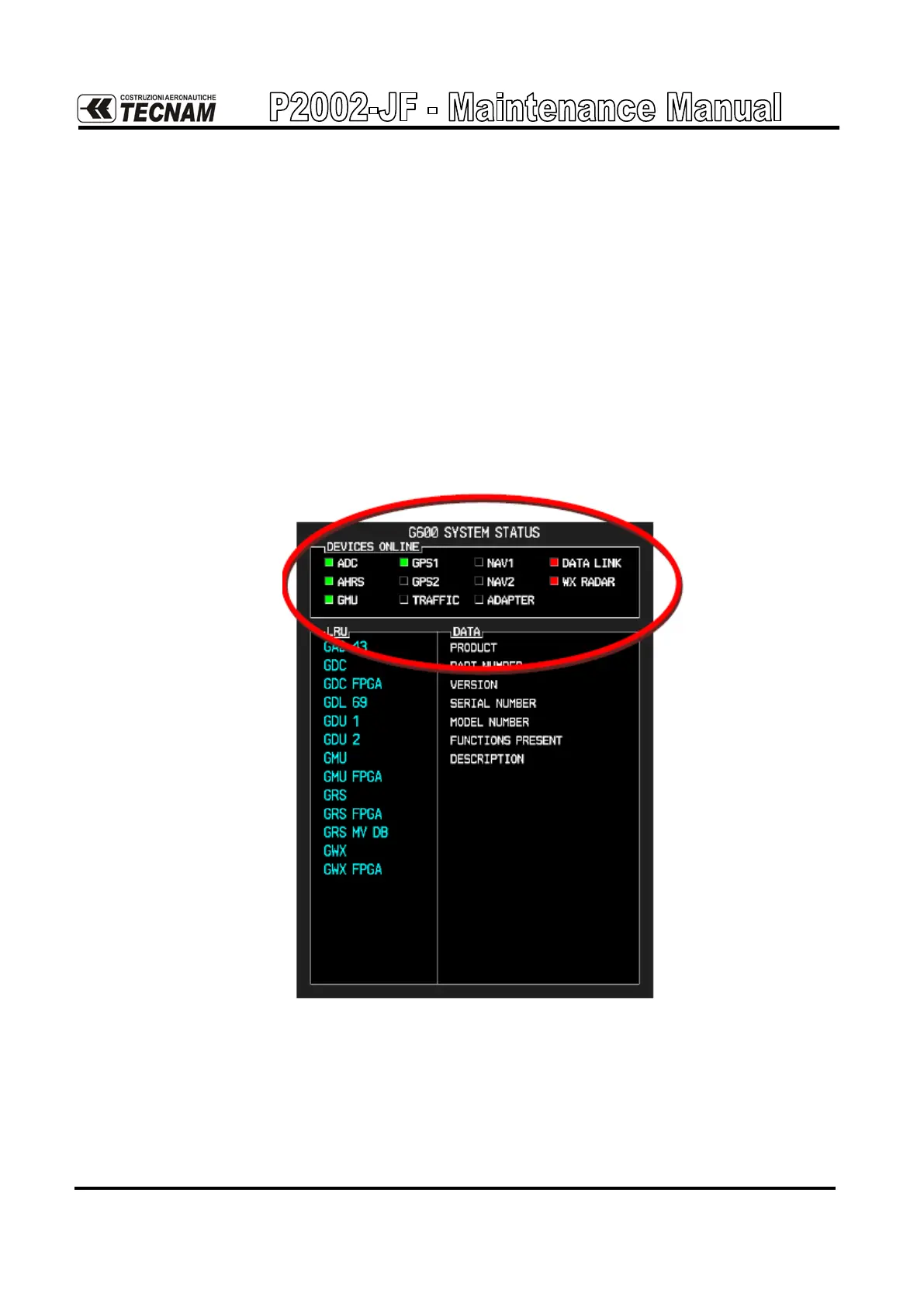

System Status Configuration Page
