LIQUID COOLING SYSTEM – DESCRIPTION AND OPERATION

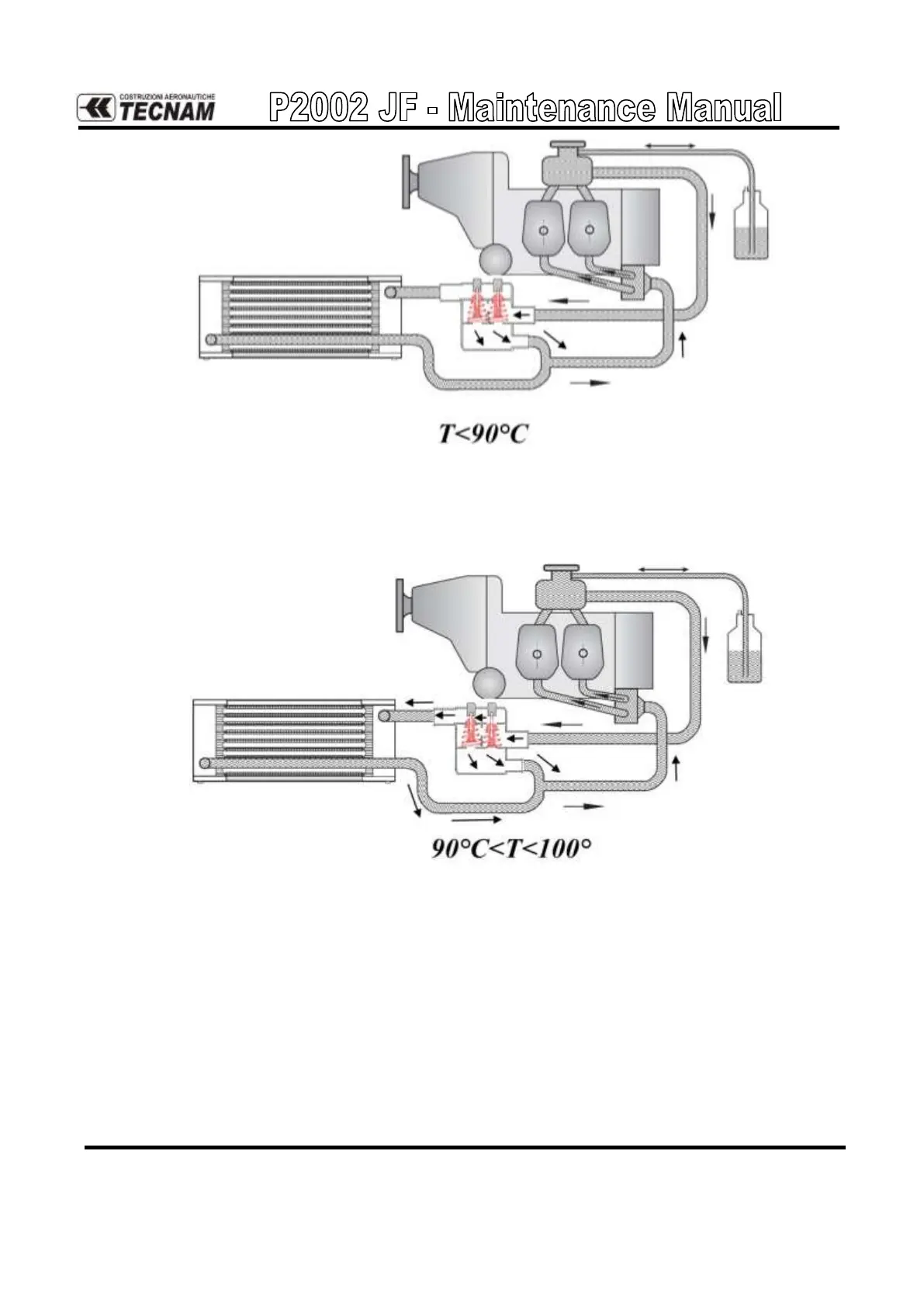

Figure 4. - Coolant flow at T<90 °C
Coolant temperature between 90°C and 100°C
Coolant circulation in this case is described by figure 5.
Figure 5. - Coolant flow at 90°C<T<100°C
As in the previous case, coolant is forced by pressure generated by the pump but in this
case, as effect of thermal expansion, first sensor (set to 90°C) is pushed down. In this
configuration, part of the coolant is driven through the radiator.
