Page 6 2
nd
Edition - Rev 0
75-10
LIQUID COOLING SYSTEM – DESCRIPTION AND OPERATION
Coolant temperature above 100°C
Figure 6 describes coolant flow when temperature is above 100°C.

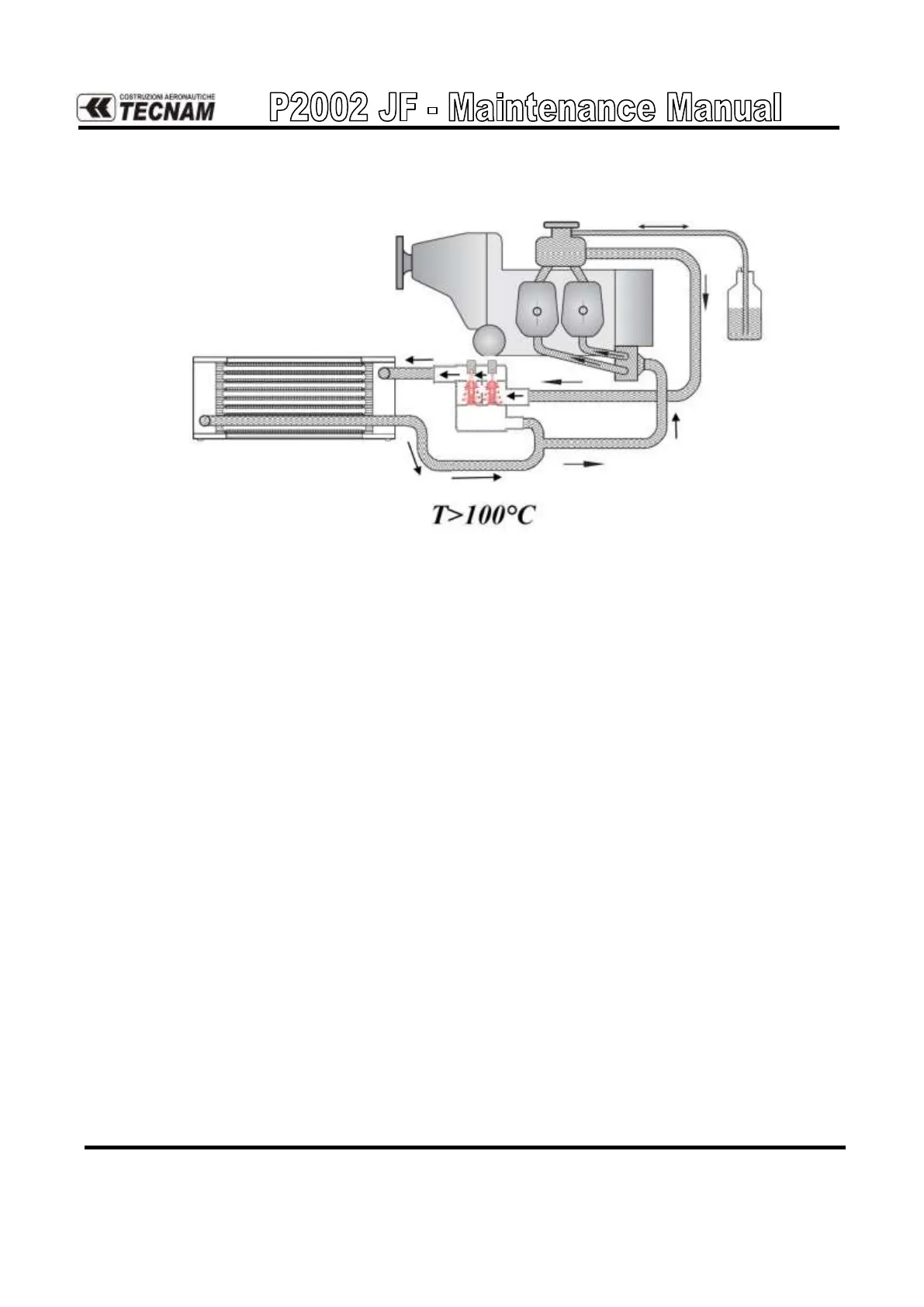

Figure 6. - Coolant flow at T>100°C
Now, both the thermal sensors of the thermostatic valve are pushed down and all the
coolant flow is forced through the radiator.
