Boeing 767 - Page 458

SEE A
A
FWD
[6] NUT
[10] BOLT
[8] CLAMP
[12] OIL
SUPPLY
LINE
[2] INSULATION
BLANKET
1166289-00-A
[11] BRACKET
[5] TURBINE
REAR FRAME
[3] PACKING
[4] OIL SLINGER
[7] COVER
[9] NUT
[1] NUT
L80481 S00061423180_V1

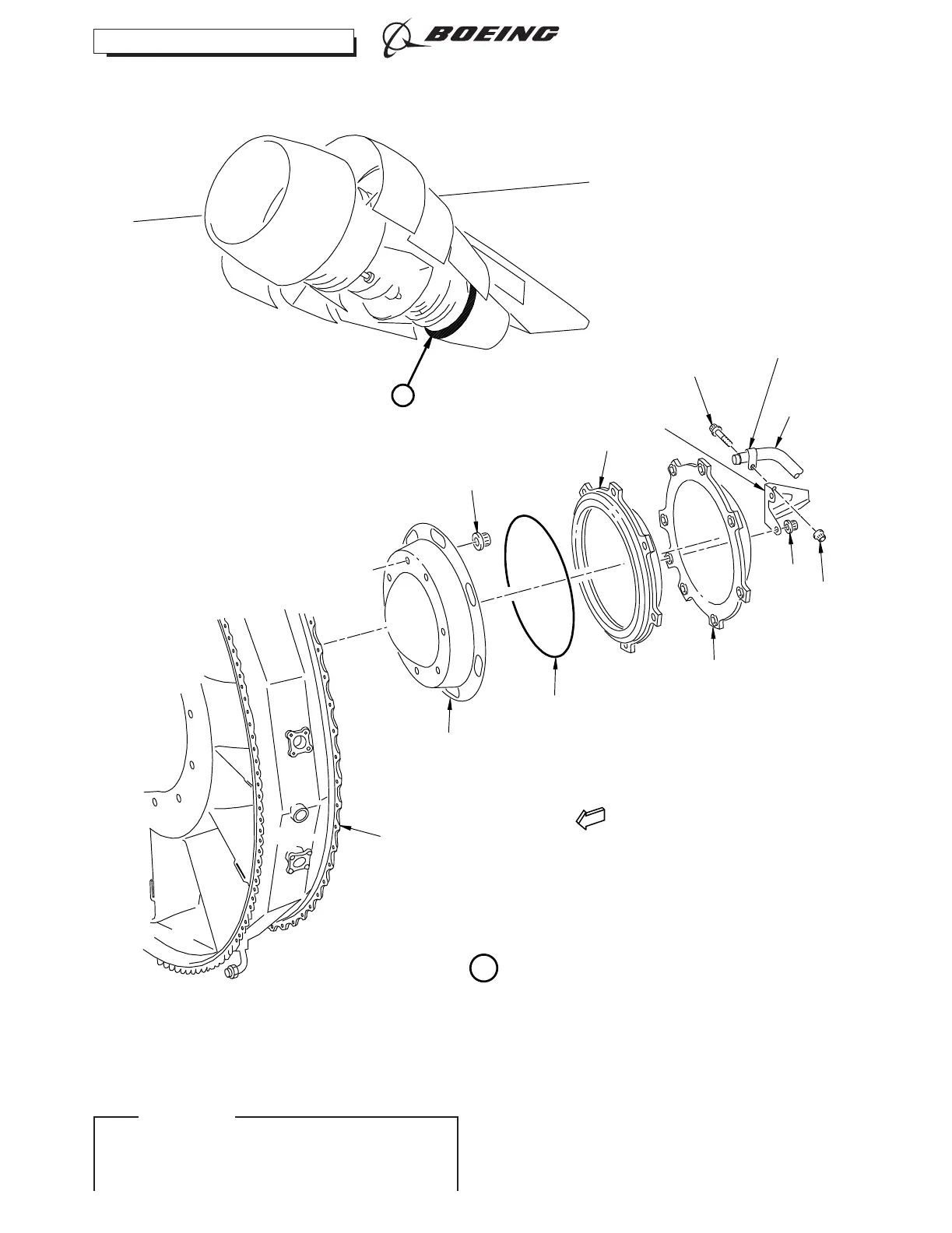

C-Sump Vent Installation
Figure 401/72-53-02-990-801-G00 (Sheet 2 of 2)
767
AIRCRAFT MAINTENANCE MANUAL
CF6-80A SERIES ENGINES
72-53-02
NoC
Page 405
D633T1B7 Dec 22/2016
ECCN 9E991 BOEING PROPRIETARY - Copyright © Unpublished Work - See title page for details
EFFECTIVITY
ABX 001-007, 011, 012, 016-019, 021, 022, 025, 101,
109, 114, 115, 314-999 POST SB CF6-80A-72-0084
