Step 2
Push the fan-tray assembly such that the backplane connector is completely engaged (see the figure below).

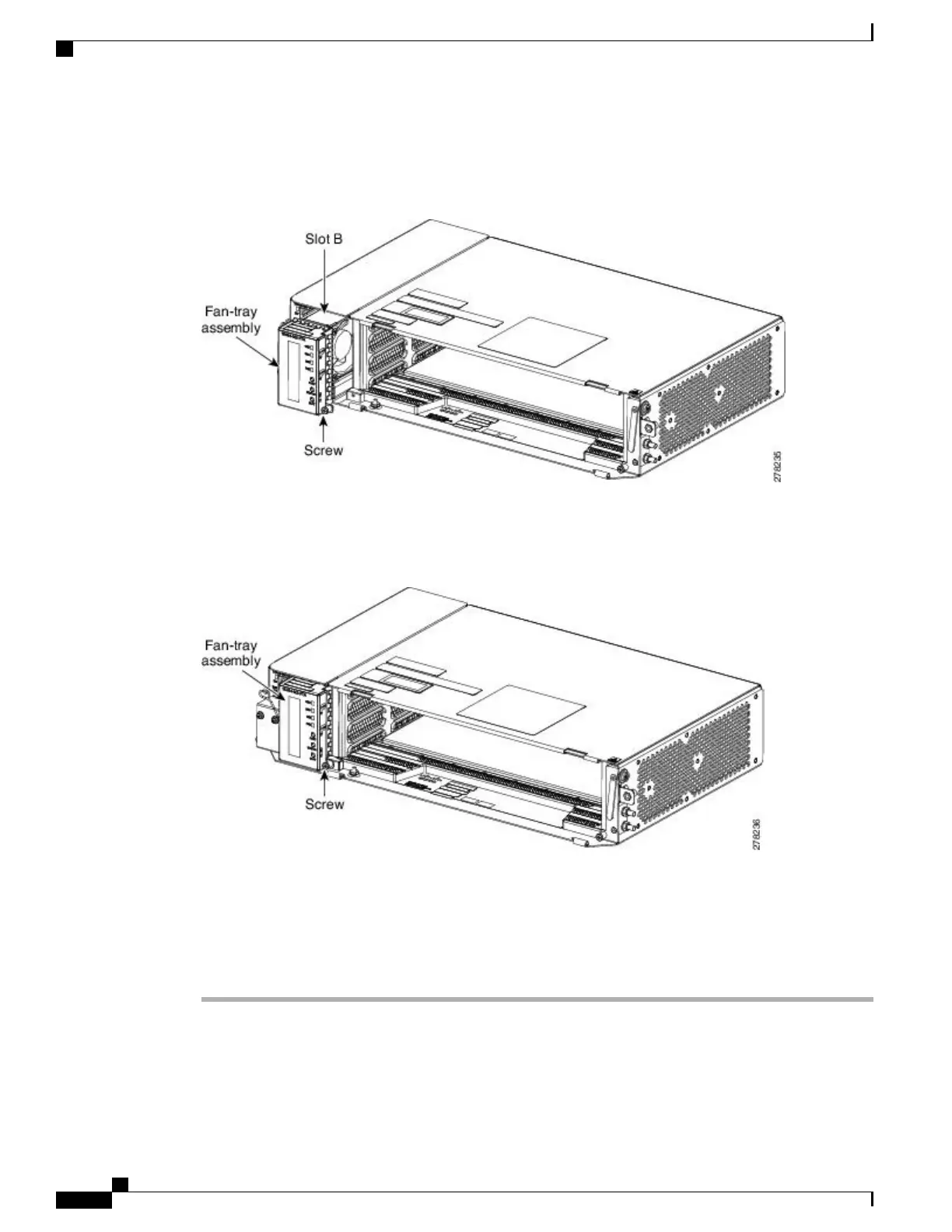

Figure 80: Inserting the Fan-Tray Assembly in the NCS 2002 Chassis
Step 3
Tighten the screw to a torque value of 4 in-lb (0.45 N-m) to lock the unit (see the figure below).
Figure 81: Fan-Tray Assembly Installed in the NCS 2002 Shelf
Step 4
To verify that the tray has plugged into the assembly, check the fan-tray and listen to determine if the fans
are running.
If the fan-tray assembly is removed from the shelf, wait for at least 5 seconds before plugging it back
into the shelf. In the event the LCD display on the fan-tray assembly appears blank, remove the unit
from the shelf, wait for at least 5 seconds and reinsert the unit into the shelf.
Note
Stop. You have completed this procedure.
Cisco NCS 2000 Series Hardware Installation Guide
134
Installing the Cisco NCS 2002 Door and Other Modules
NTP-L35 Installing the Fan-Tray Assembly in the NCS 2002 Shelf
