c) Tighten the screws to a torque value of 11.5 in-lb (1.3 N-m).

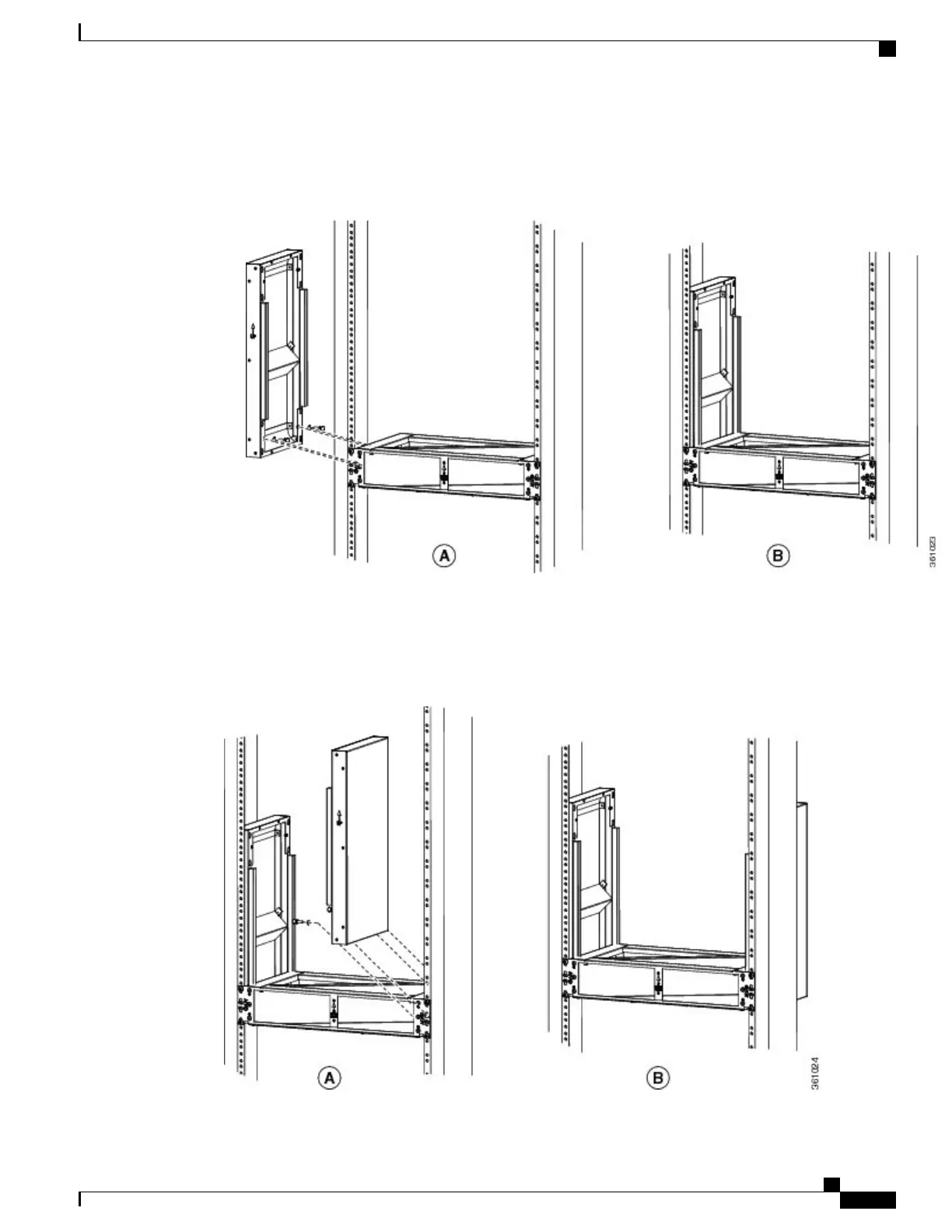

Figure 87: Installing the left vertical air plenum
Step 4
Place the vertical air plenum to the right of the horizontal air plenum.
Step 5
Install the wing head screws provided with the kit, and tighten to a torque value of 11.5 in-lb (1.3 N-m).
Figure 88: Installing the right vertical air plenum
Cisco NCS 2000 Series Hardware Installation Guide
147
Installing the Air Flow Regulator
DLP-L64 Installing Air Plenum for NCS 2006 Shelf in ANSI 19-inch Cabinet
