#2 Phillips Dynamometric screwdriver
•
Medium slot-head screwdriver
•
Small slot-head screwdriver
•
Screws: M6.0 x 20 pan-head Phillips screws (8)
•
Wing head screws (8)
•
Adapter plates
•
One air plenum kit (horizontal and vertical air
plenum)
Tools/Equipment
As neededRequired/As Needed
OnsiteOnsite/Remote
NoneSecurity Level
Procedure
Step 1
Install the ETSI adapter plates on the horizontal air plenums.
Step 2
Align the screws to fix the adapter plates to the shelf. Insert the screws and tighten them to a torque value of
11.5 in-lb (1.3 N-m).

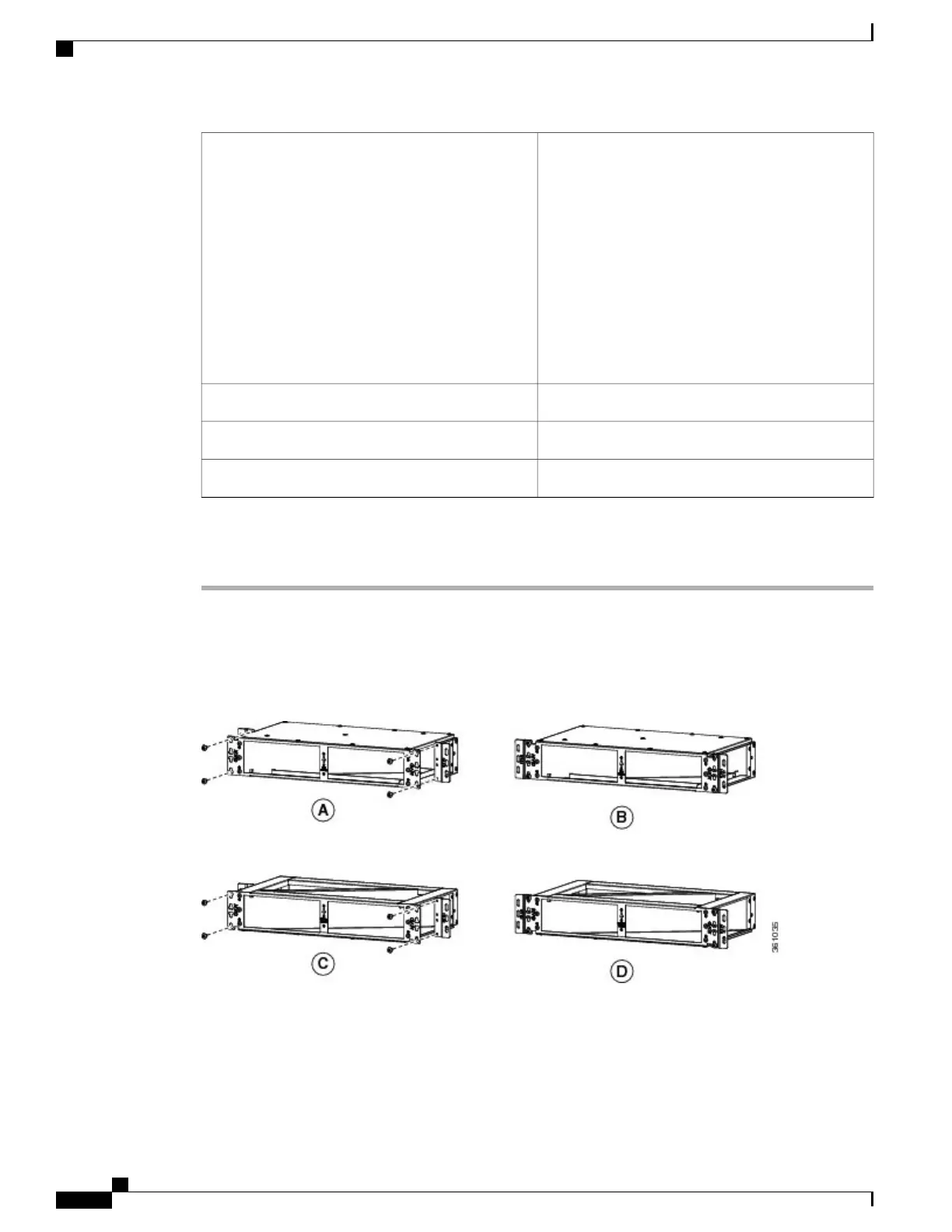

Figure 98: Installing the adapter plates on the horizontal air plenum
Cisco NCS 2000 Series Hardware Installation Guide
158
Installing the Air Flow Regulator
DLP-L67 Installing Air Plenum for NCS 2006 Shelf in ETSI Configuration
