Procedure
Step 1
Connect the return cables of the power supply to the Earth ground located at the power supply side.
Step 2
Connect the office power according to the fuse panel engineering specifications.
Step 3
Measure and cut the cables as needed to reach the NCS 2006 from the fuse panel.
Step 4
Address the power according to local site practice.
Step 5
Strip 1/2 inch (12.7 mm) of insulation from all power cables that you will use.
Step 6
Crimp the lugs onto the ends of all the power leads.
Step 7
Verify that the DC power module is installed in Slot A or Slot B (or both) of the NCS 2006 shelf.
Step 8
Remove the terminal block protective covers from the DC power modules (see the figure below).

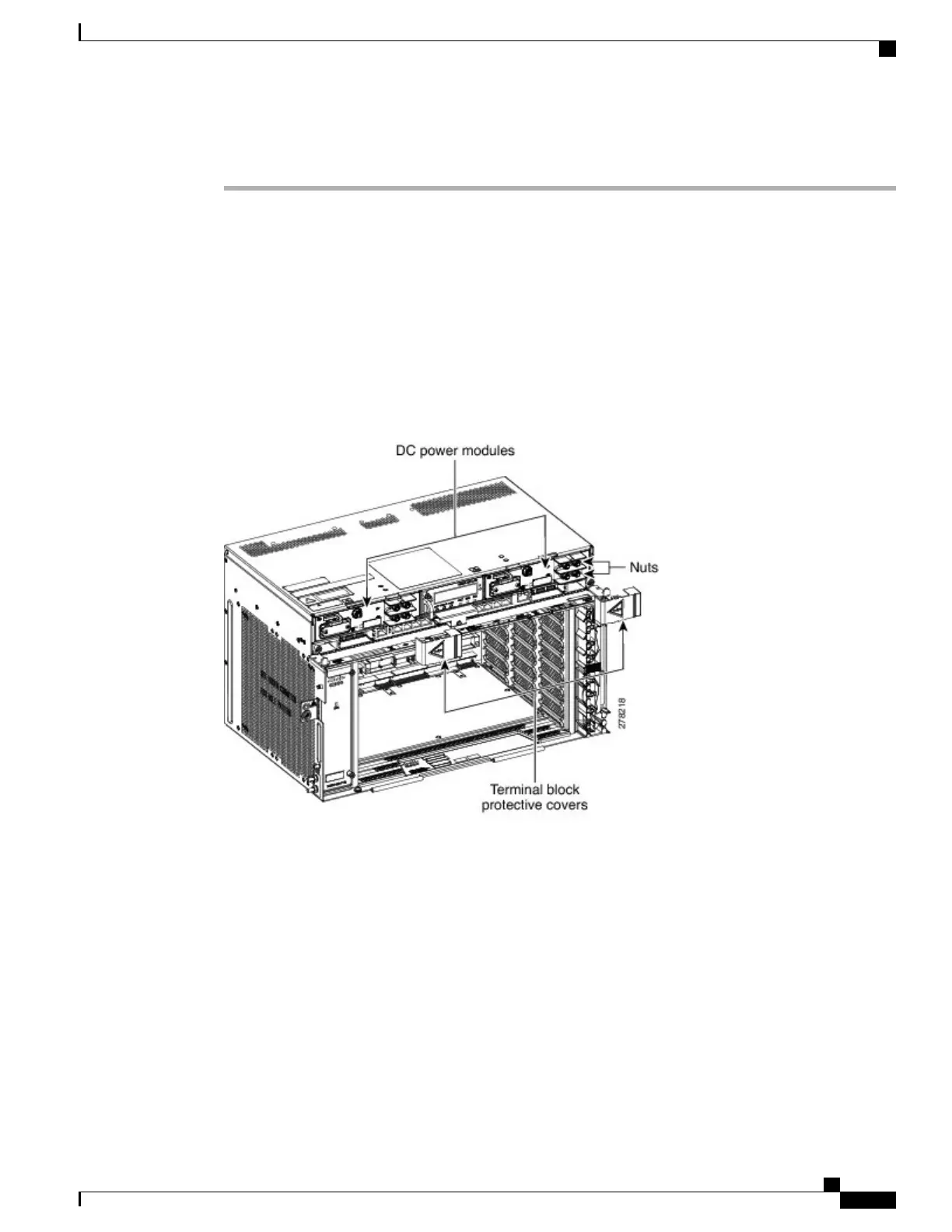

Figure 122: Connecting Office Power
—
DC Power Modules (ANSI Only)
Cisco NCS 2000 Series Hardware Installation Guide
211
Connecting Power and Ground
DLP-L19 Connecting Office Power (DC) to the NCS 2006 Shelf ( Only)
