Step 4
Attach the DC ETSI power cable to the cable connector in the DC power module (see the figure below).
Step 5
Tighten the screws to a torque value of 4 in-lb (0.45 N-m) to secure the cable (see the figure below).

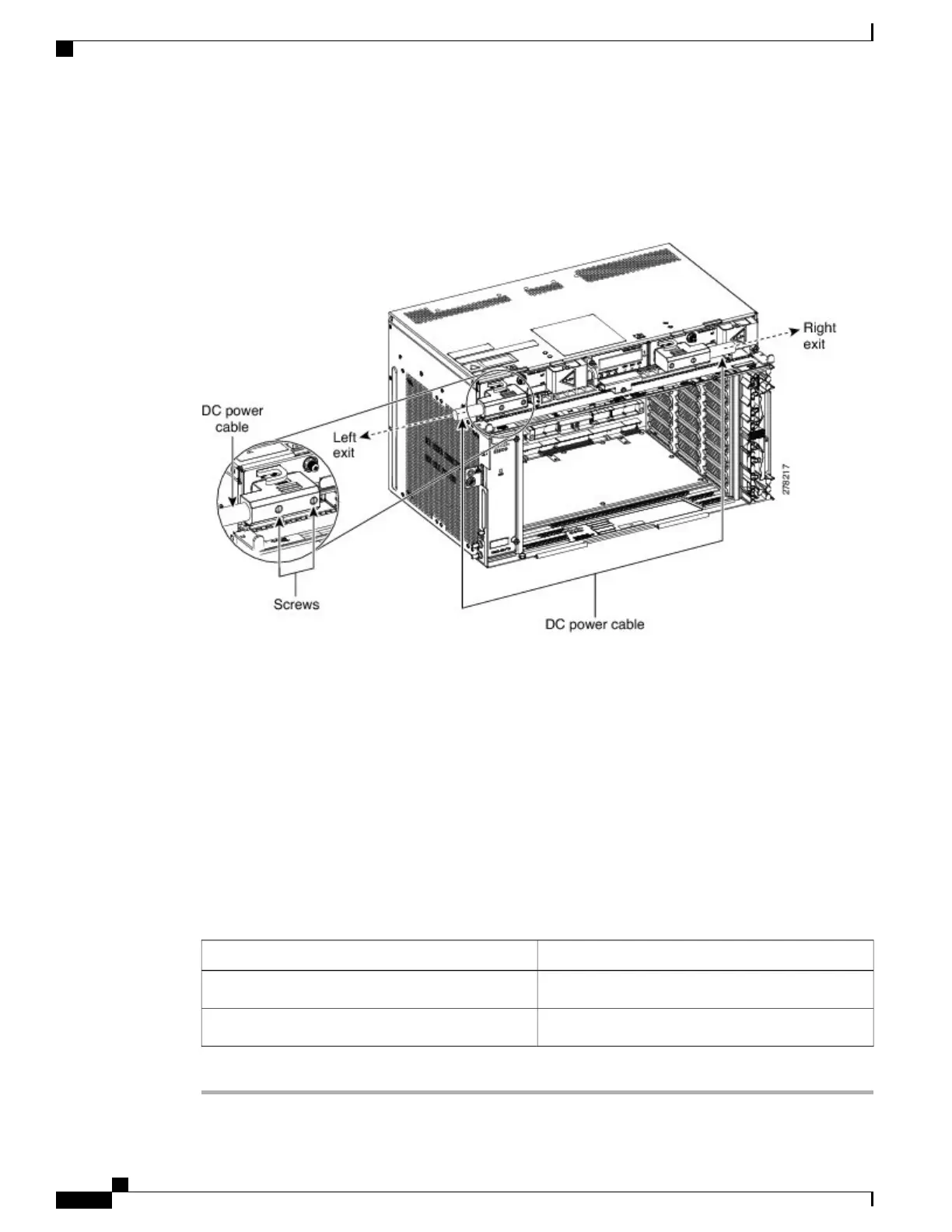

Figure 126: Connecting Office Power
—
DC Power Modules (ETSI Only)
For slot A power module, use the left power cable NCS2006-DCCBL2-L, and for slot B use the right
power cable NCS2006-DCCBL2-R. For slot A power module, the power cable exits from the left
side. For slot B power module, the power cable exits from the right side
Note
Use only pressure terminal connectors, such as ring and fork types, when terminating the battery,
battery return, and frame ground conductors.
Note
Before you make any crimp connections, coat all bare conductors (battery, battery return, and
frame ground) with an appropriate antioxidant compound. Bring all unplated connectors, braided
strap, and bus bars to a bright finish, then coat with an antioxidant before you connect them. You
do not need to prepare tinned, solder-plated, or silver-plated connectors and other plated connection
surfaces, but always keep them clean and free of contaminants.
Caution
When terminating power, return, and frame ground, do not use soldering lug, screwless (push-in)
connectors, quick-connect, or other friction-fit connectors.
Caution
Step 6
Return to your originating procedure (NTP).
Table 11: PIDs for DC Power Cables
PIDCable
NCS2006-DCCBL2-L=DC power cable for ETSI left exit
NCS2006-DCCBL2-R=DC power cable for ETSI right exit
