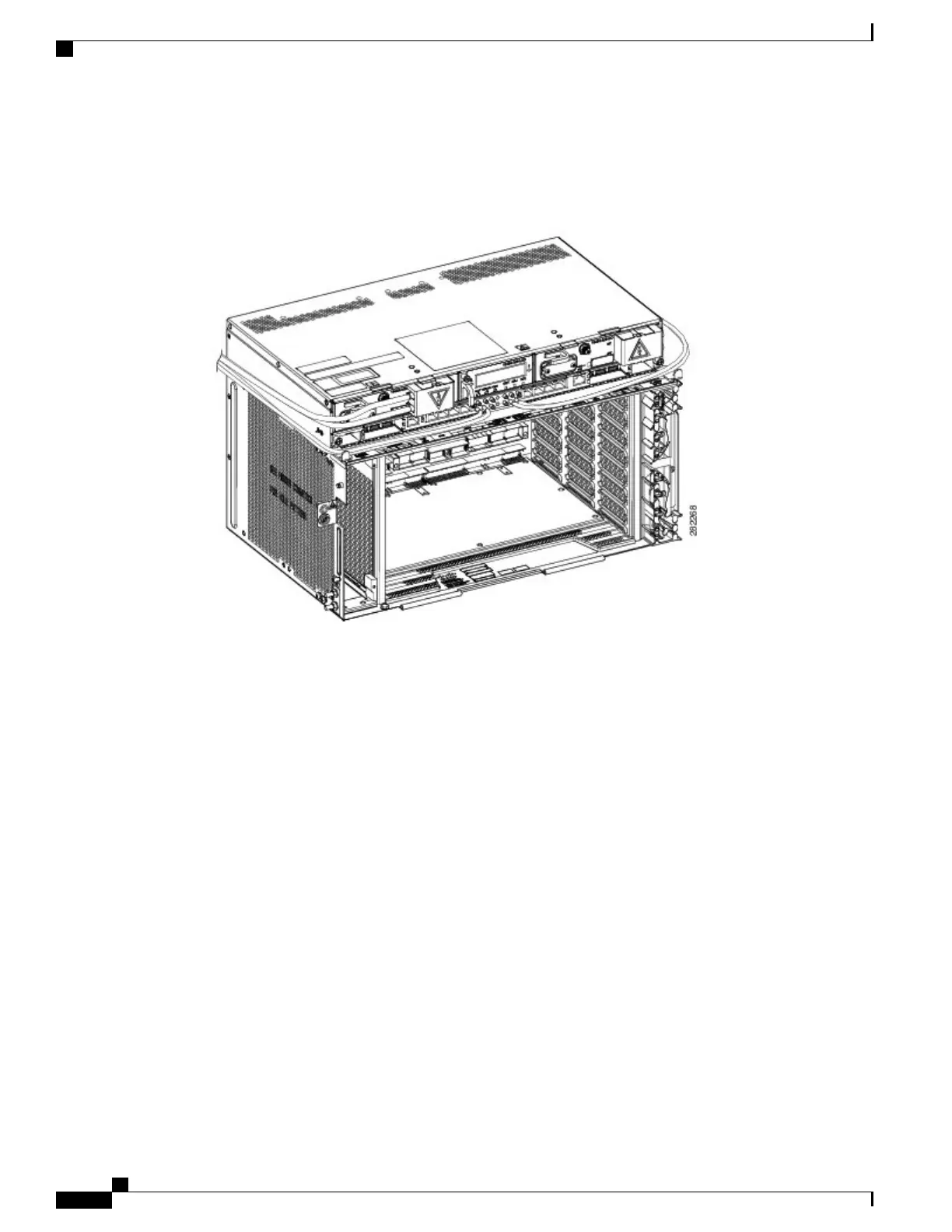

The following figure shows cable routing of ECU module ETSI BITS connectors.
Figure 138: ECU module ETSI BITS Connectors Cabling
Step 2
Gently push the cable connector into the ECU module connector until you hear a click. Perform the following
steps to mate the connectors:
a) Slide the coupling sleeve of the coaxial cable backward. See diagram1 of the figure below.
b) Connect the cable to the ECU module connector. See diagram2 of the figure below.
c) Slide the coupling sleeve forward to lock the cable connector to the ECU module connector. See diagram3
of the figure below.
Cisco NCS 2000 Series Hardware Installation Guide
238
Connecting and Routing the Cables
DLP-L28 Installing Timing Wires in NCS 2006 - ETSI
