Step 3
Place the deep-front panel close to the shelf so that the shelf notches and the deep-front panel retention features
are in line, as shown in the figure below.

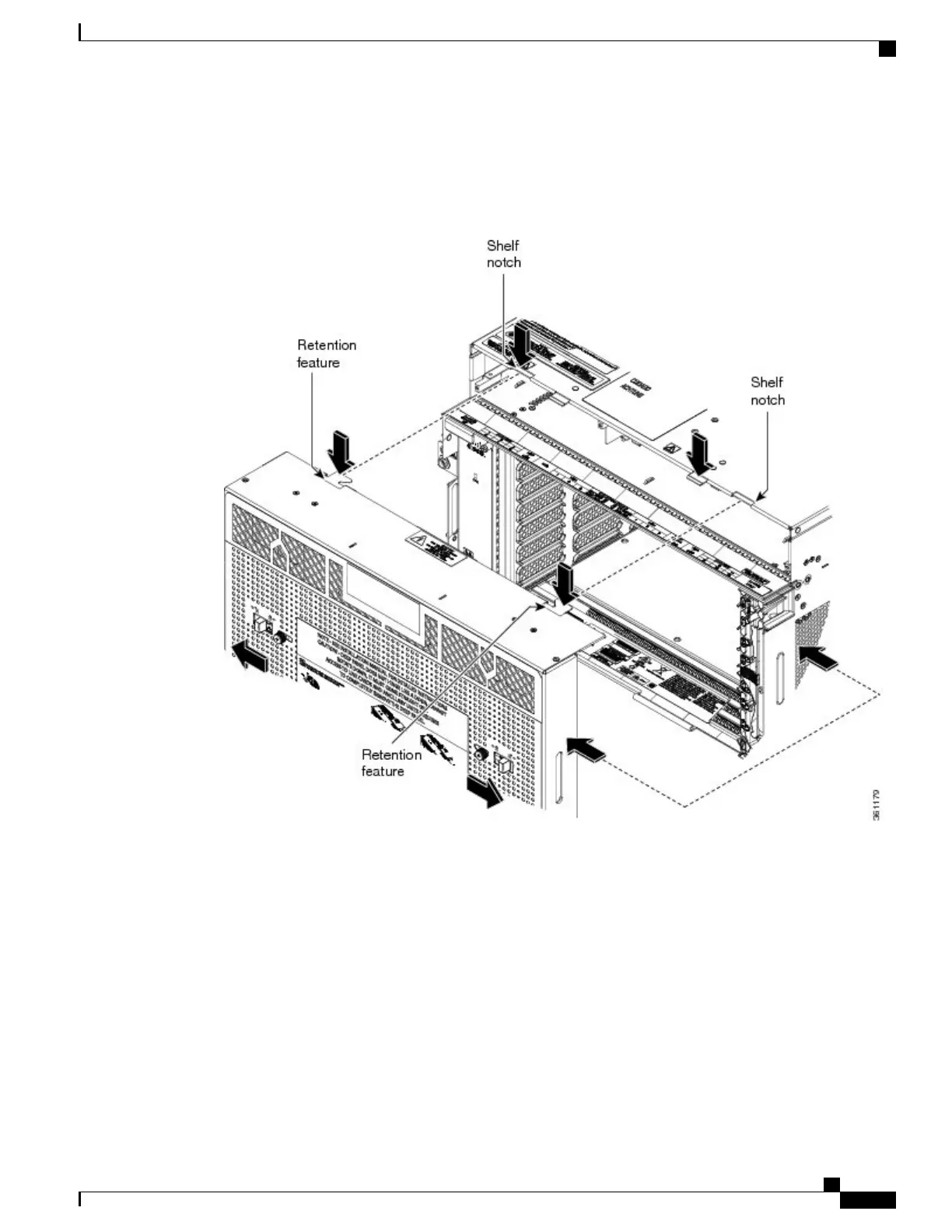

Figure 153: Placing Deep-Front Panel and Shelf in line
Step 4
Align the deep-front panel with the shelf by performing the following sub-steps at the same time.
a) Align the right and left retention features of the deep-front panel with the right and left notches present
on the top of the shelf. See the above figure.
Cisco NCS 2000 Series Hardware Installation Guide
261
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L39 Install the Deep-Front Panel of the NCS 2006
