b)
Align
the
deep-front
panel
pins
present
at
the
bottom
of
the
panel
with
the
shelf
hinges.
See
the
figure
below
.

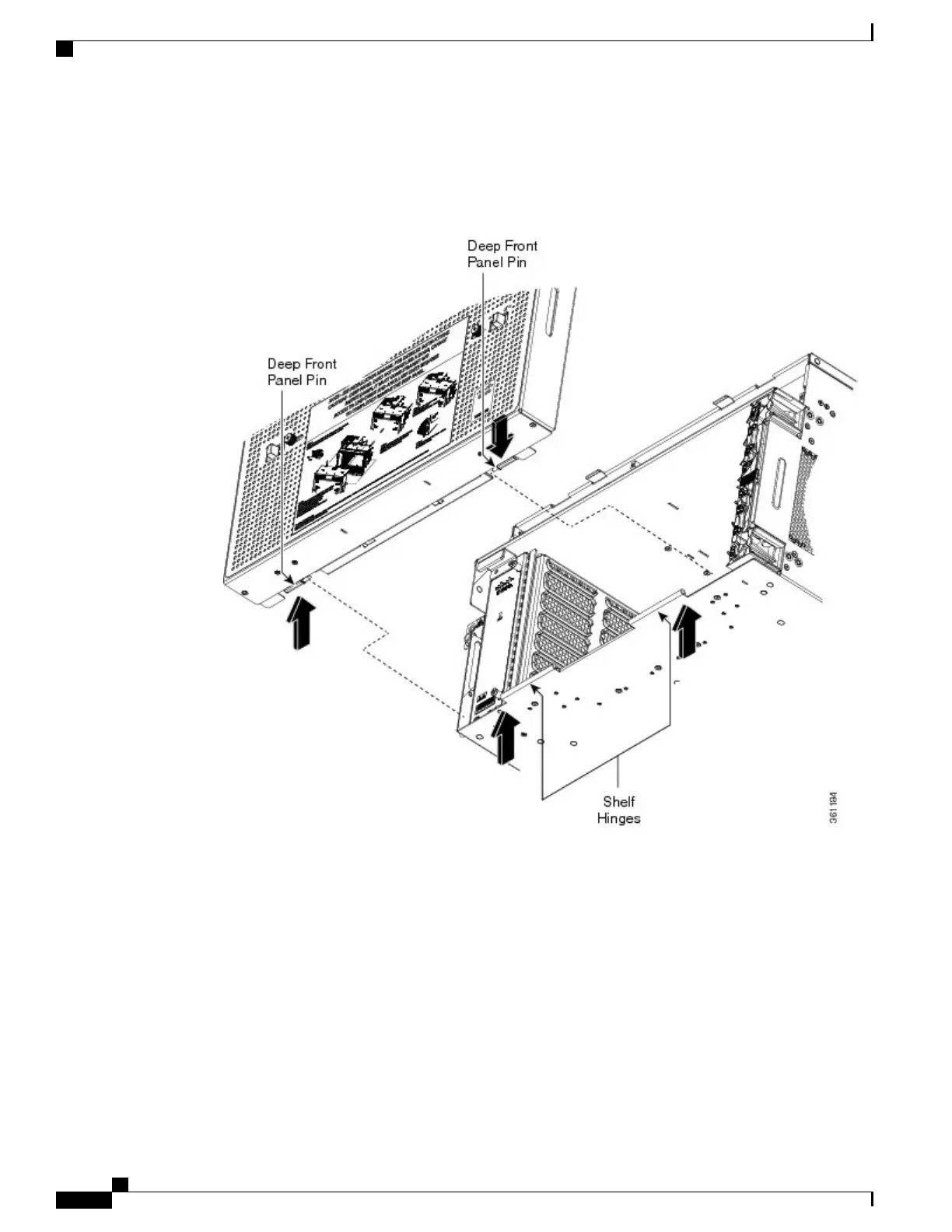

Figure 154: Align the Deep-Front Panel Pins and Shelf Hinges
Cisco NCS 2000 Series Hardware Installation Guide
262
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L39 Install the Deep-Front Panel of the NCS 2006
289
291
