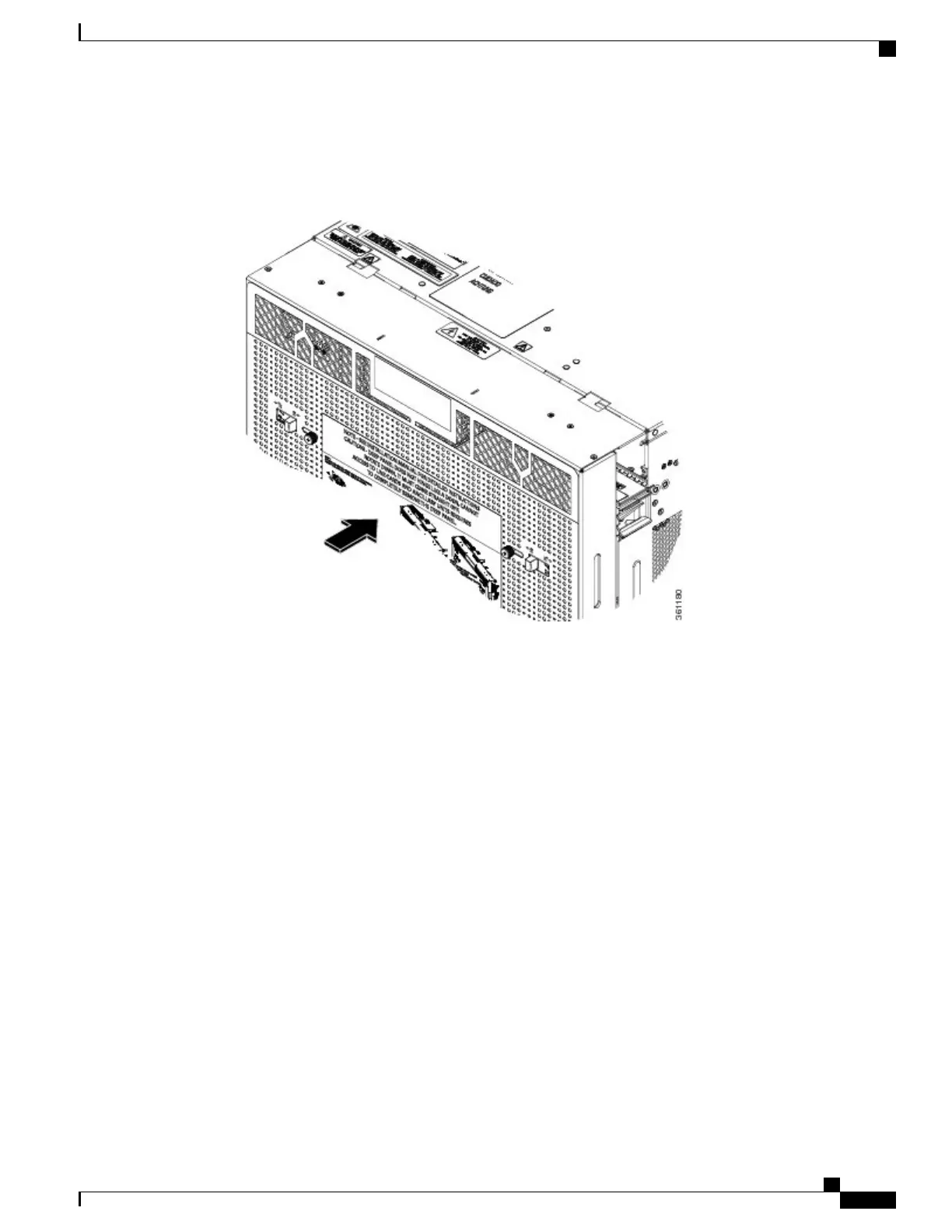

The following figure shows the deep-front panel aligned with the shelf.
Figure 155: Align the Deep-Front Panel and Shelf
Cisco NCS 2000 Series Hardware Installation Guide
263
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L39 Install the Deep-Front Panel of the NCS 2006
