Step 5
Slide the deep-front panel screws inwards using the plastic tabs to engage the retention features and the pins
with the shelf notches and hinges. See the figure below. Verify the engagement by gently applying the pressure
to the panel outwards.

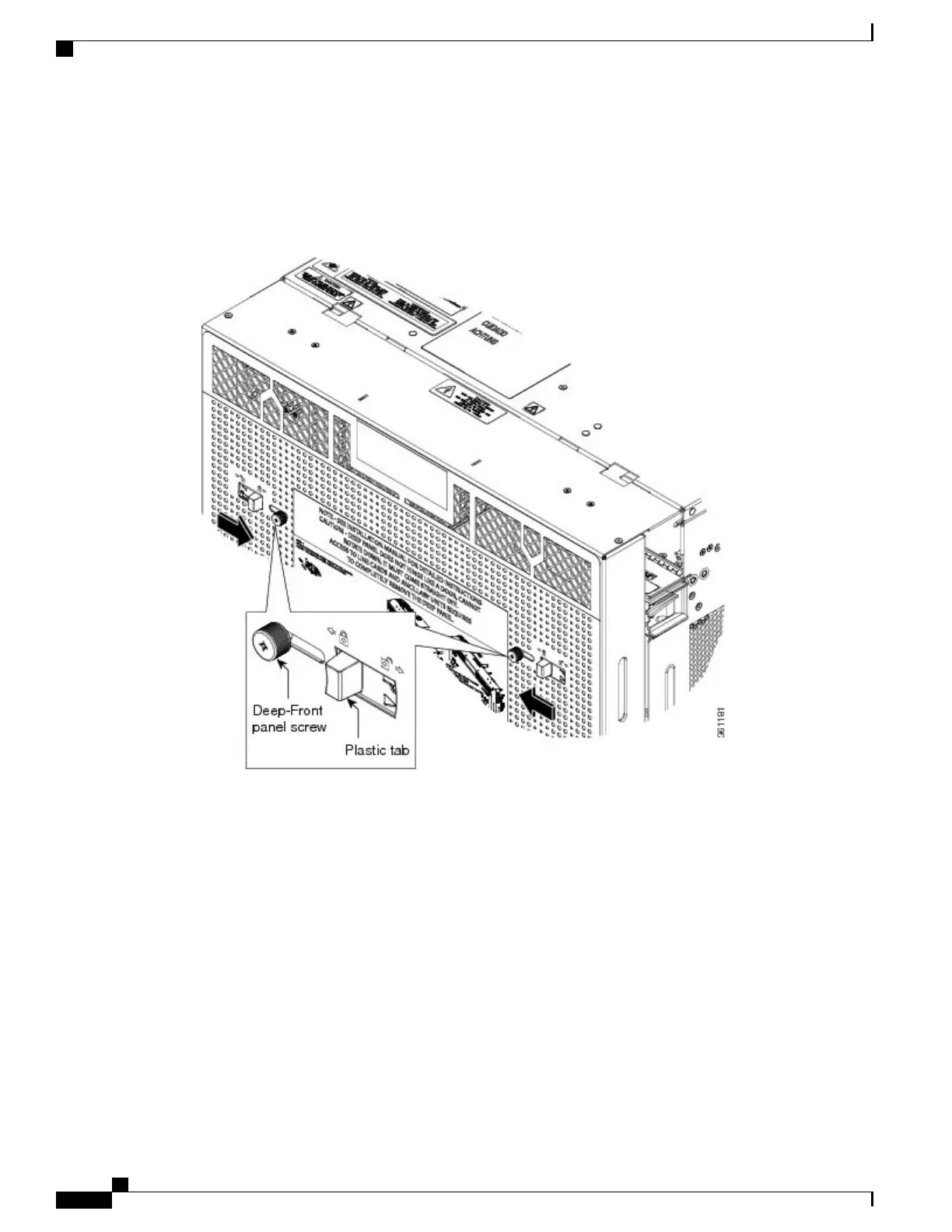

Figure 156: Engage the Deep-Front Panel and Shelf
Cisco NCS 2000 Series Hardware Installation Guide
264
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L39 Install the Deep-Front Panel of the NCS 2006
