Procedure
Step 1
Remove
the
end
of
the
ground
strap
cable
that
is
connected
to
the
exterior
of
the
deep-front
panel.

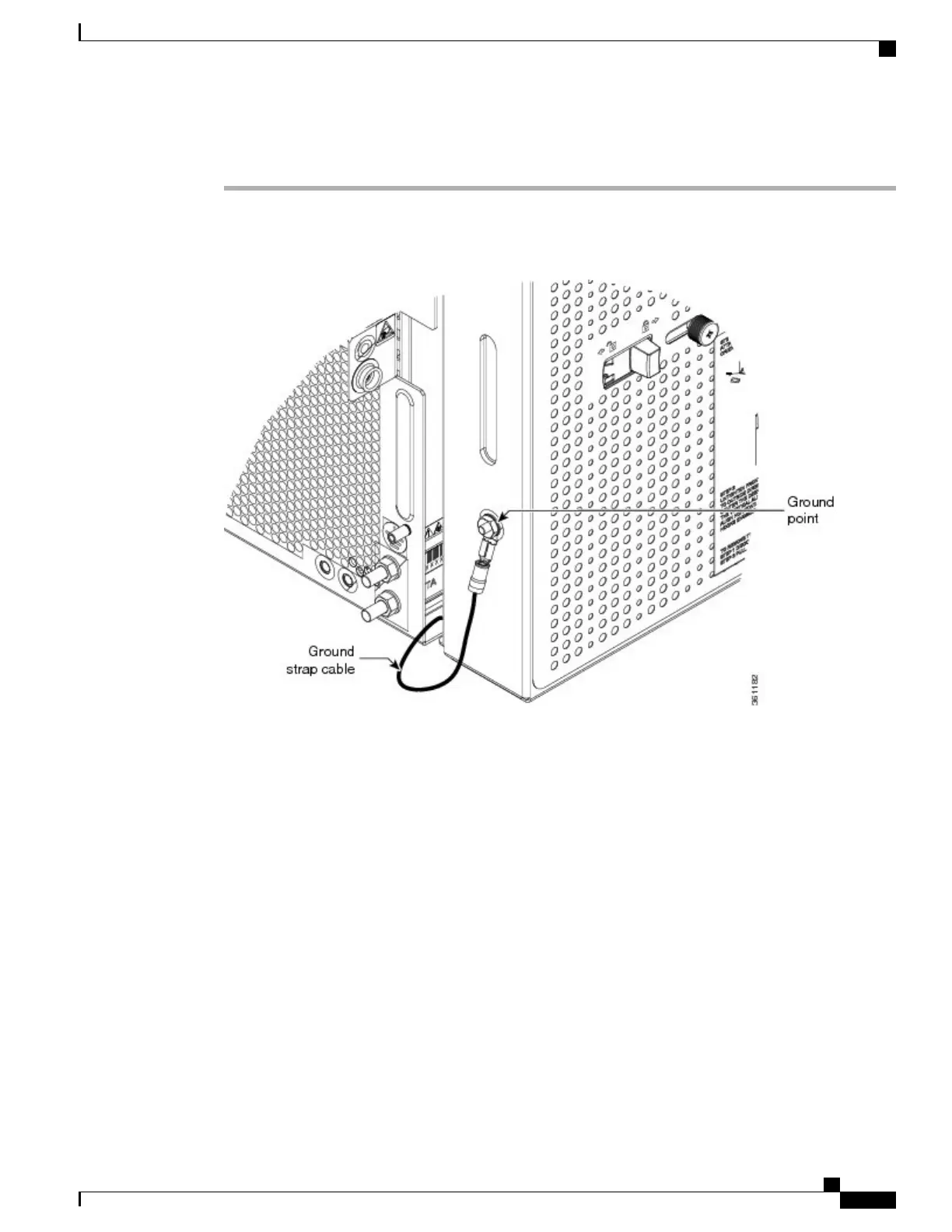

Figure 158: Removing the end of the ground strap cable
Cisco NCS 2000 Series Hardware Installation Guide
267
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L40 Remove the Deep-Front Panel of the NCS 2006 Shelf
294
296
