Step 2
Loosen
the
panel
screws
to
open
the
deep-front
panel.
Step 3
Move
the
deep-front
panel
screws
in
the
direction
as
shown
in
the
figure
below
to
disengage
the
retention
features
and
the
pins
from
the
shelf
notches
and
hinges.
See
the
figure
below
.

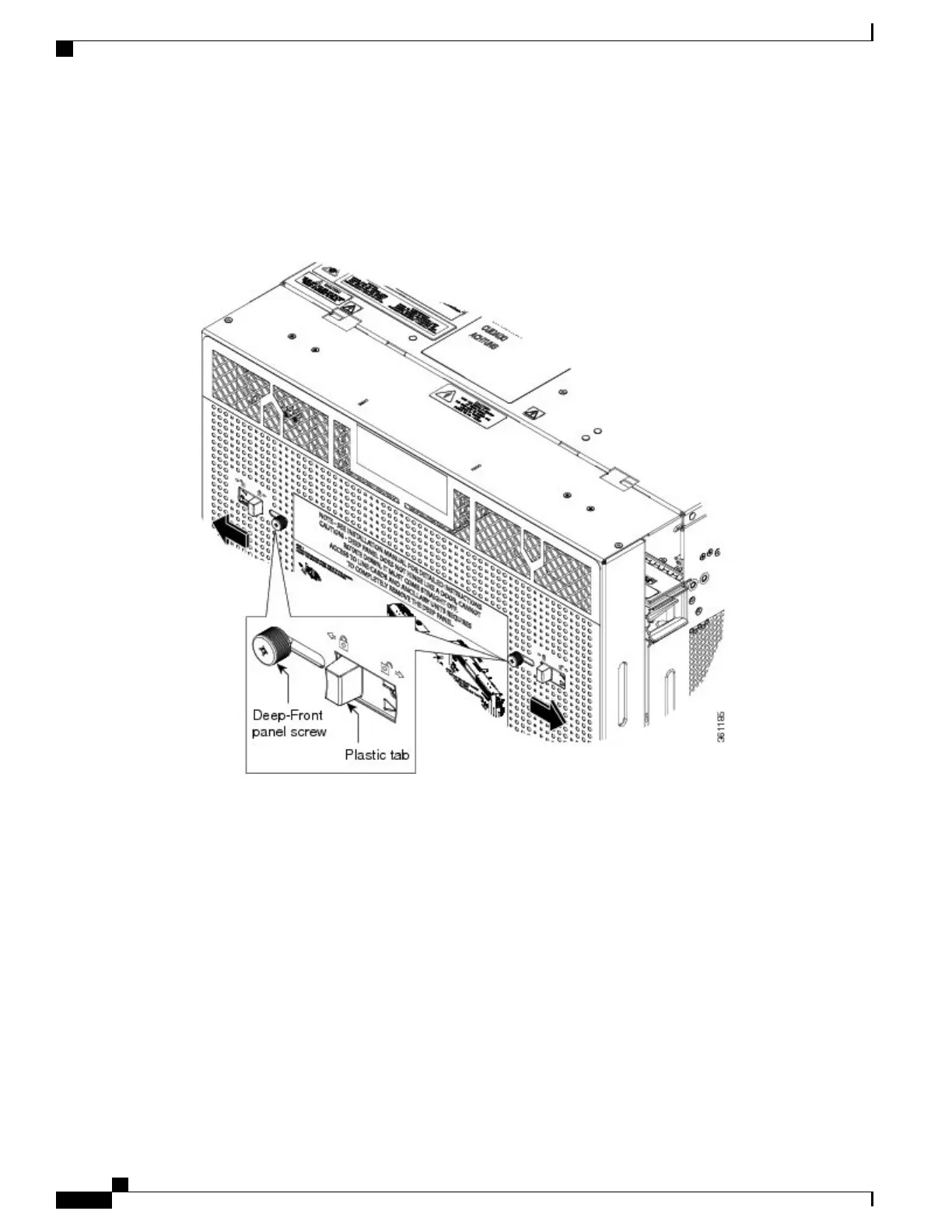

Figure 159: Move the Deep-Front Panel to Disengage
Cisco NCS 2000 Series Hardware Installation Guide
268
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L40 Remove the Deep-Front Panel of the NCS 2006 Shelf
295
