Step 4

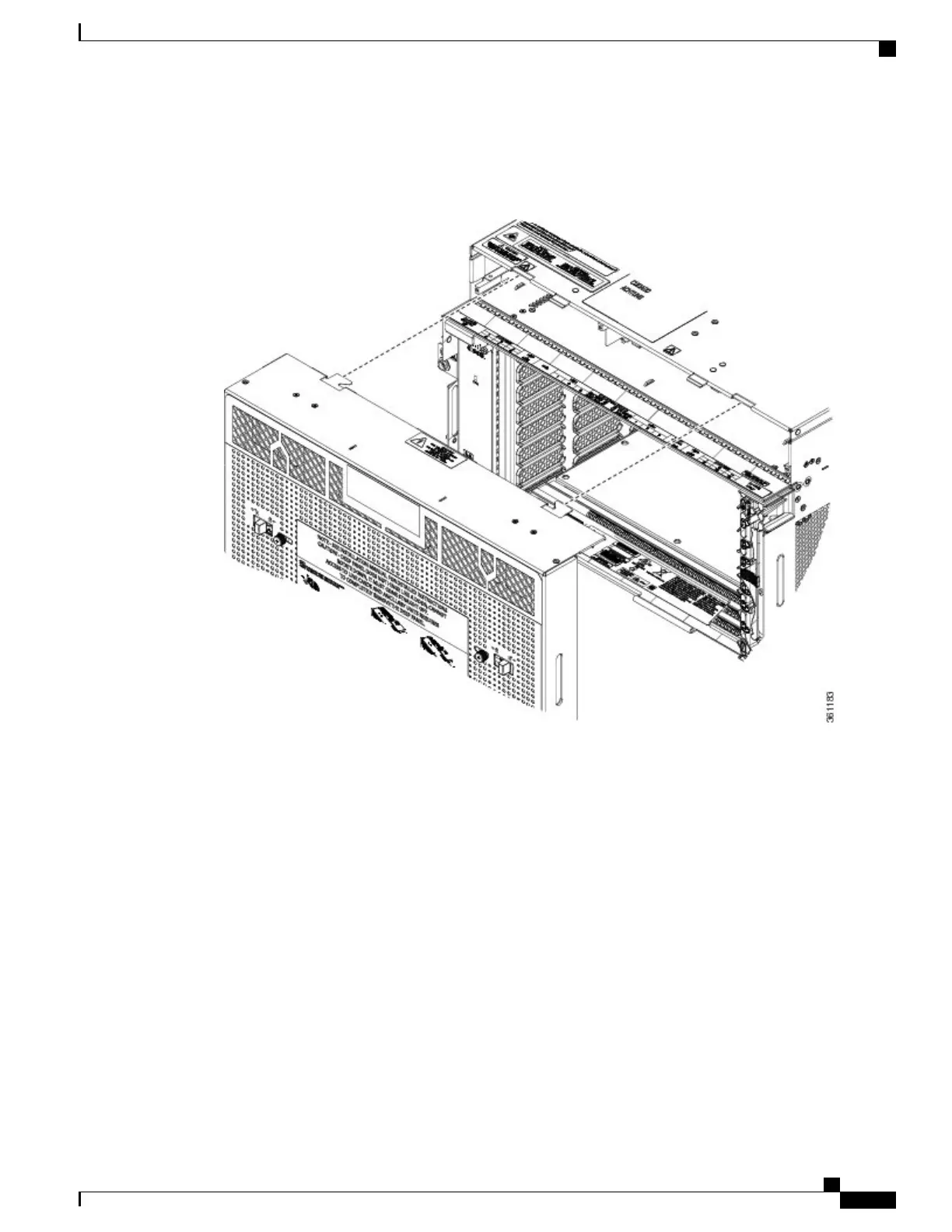

Move the deep-front panel away from the shelf. See the figure below.
Figure 160: Move the Deep-Front Panel Away
The deep-front panel does not have a hinge and cannot be rotated like a standard door. Rotating
the deep-front panel can damage the deep-front panel, shelf hinges, other devices and cables placed
below the NCS 2006 shelf.
Caution
Step 5
Remove the ground strap cable from the shelf. See the figure below:
a) Loosen the ground nut on the shelf.
Cisco NCS 2000 Series Hardware Installation Guide
269
Installing the Cisco NCS 2006 Door and Other Modules
NTP-L40 Remove the Deep-Front Panel of the NCS 2006 Shelf
