Procedure
Step 1
Place the mounting bracket flush against the shelf as shown in the figure below.
Step 2
Align the mounting bracket screw holes against the shelf screw holes.
Step 3
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 4
Repeat steps 1 through 3 for the mounting bracket on the opposite side.

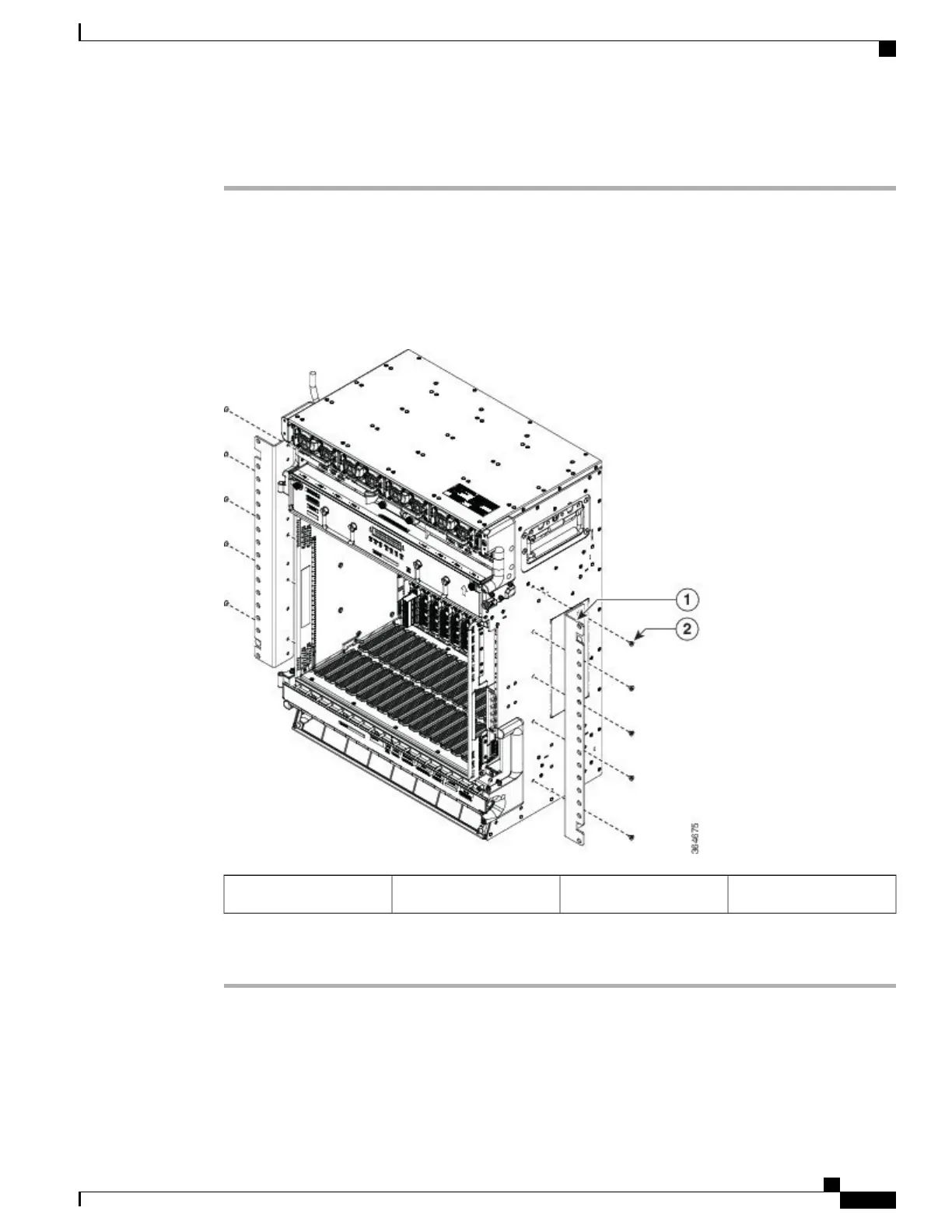

Figure 181: Mounting the Brackets on the NCS 2015 DC Shelf for ETSI Rack Configuration
Screw2Mounting bracket1
Stop. You have completed this procedure.
Cisco NCS 2000 Series Hardware Installation Guide
309
Mounting the Brackets on the NCS 2015 Shelf
NTP-L49 Mounting Brackets on NCS 2015 Shelf for ETSI Rack Configuration
