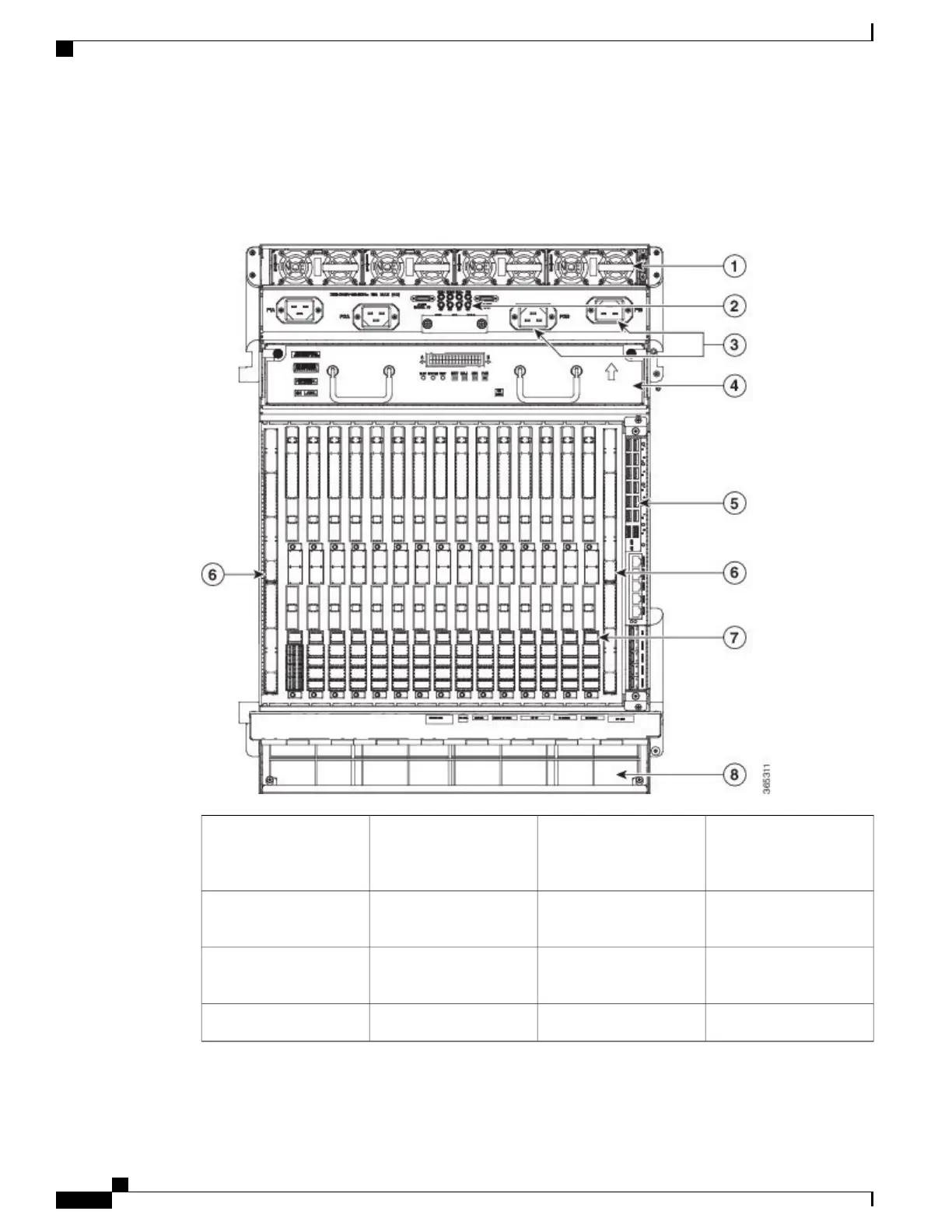

The following figure shows the front view of the Cisco NCS 2015 AC chassis.
Figure 4: Front View of the NCS 2015 AC Chassis
Alarm dry contacts and
BITS in the power input
panel
2Power modules1
Fan tray assembly with
LCD panel
4AC cable connectors3
TNCS/TNCS-O cards in
slots 1 and 17
6External connection unit
(ECU)
5
Air inlet8Line cards7
Cisco NCS 2000 Series Hardware Installation Guide
6
Overview
Cisco NCS 2015 Shelf
