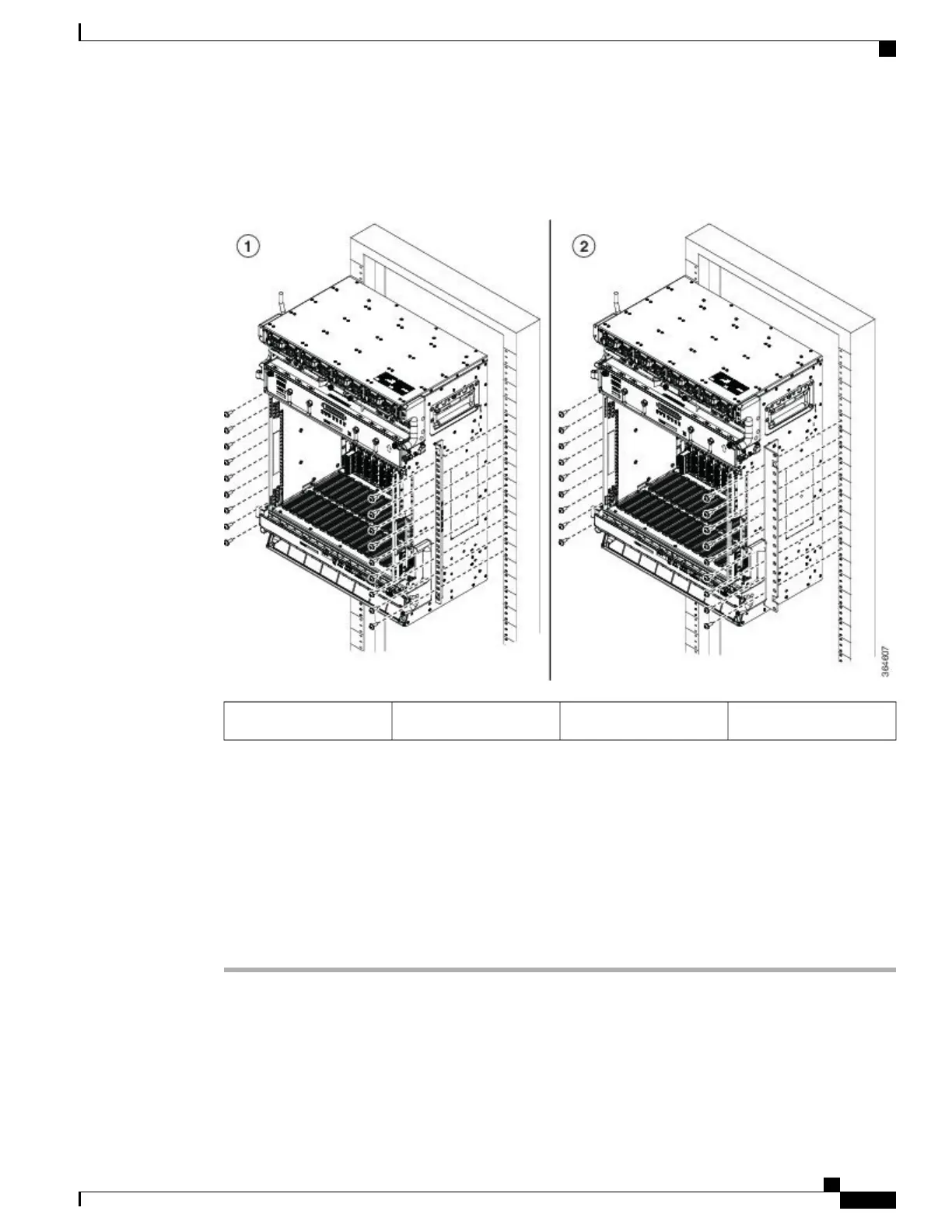

Diagram 2 of the figure below shows the NCS 2015 DC shelf mounted on an ETSI rack in the middle position.
Figure 186: Mounting an NCS 2015 DC Shelf on a Rack
ETSI equipment rack2ANSI equipment rack1
Step 3
Lift the shelf to the desired position in the rack. If the rack is empty, place the shelf at the bottom of the rack.
The placement of the shelf depends on where you want to install the new equipment in the rack.
To ensure proper cooling of the NCS 2015 shelf, make sure that the space in front of the air flow
vents are free of cables, fibers, and mechanical fixtures for fiber and cable management.
Note
Step 4
Align the screw holes on the mounting brackets with the mounting holes in the rack.
Step 5
Using the Phillips Dynamometric screwdriver, install one mounting screw in each side of the assembly.
Tighten the screw to a torque value of 22 in-lb (2.5 N-m).
Step 6
When the shelf is secured to the rack, install the remaining mounting screws.
Step 7
Return to your originating procedure (NTP).
Cisco NCS 2000 Series Hardware Installation Guide
321
Mounting the Cisco NCS 2015 Shelf
DLP-L72 Mounting NCS 2015 Shelf on a Rack (One Person)
