Procedure
Step 1
Align the left deep door bracket screw holes against the shelf screw holes.
Step 2
Insert the M3 x 10 mm screws (three screws on the side and two screws on the bottom of the deep door bracket)
and tighten them to a torque value of 11.5 in-lb (1.3 N-m). (See the figures below.)
Step 3
Place a safety washer on the front bottom of the deep door bracket and fasten it with a M3 x 8 mm screw.
(See the figures below.)
Step 4
Repeat steps 1 and 2 for the deep door bracket on the opposite side. (See the figures below.)

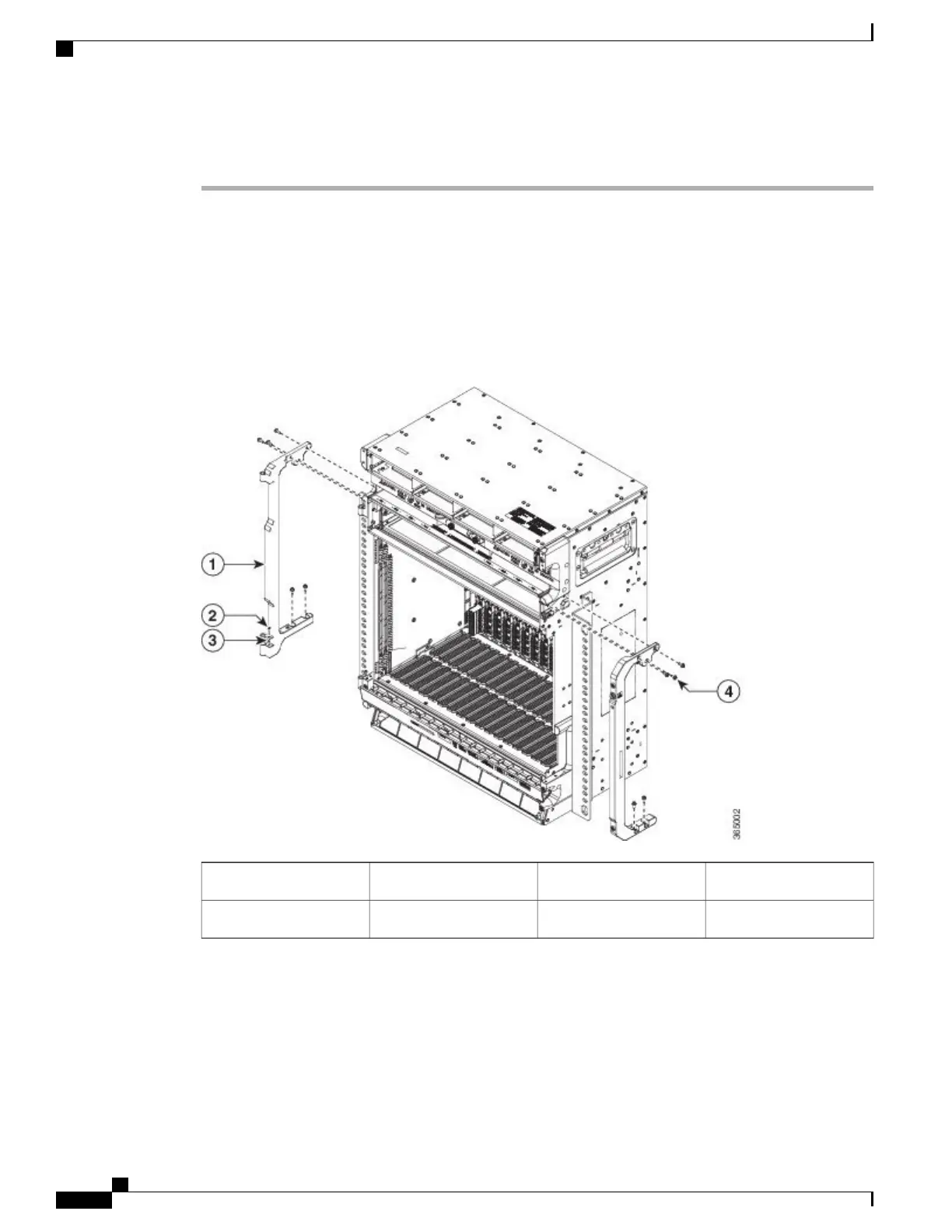

Figure 214: Installing the Deep Door Bracket of NCS 2015 DC Shelf
M3 x 8 mm screw2Deep door bracket1
M3 x 10 mm screw4Safety washer3
Cisco NCS 2000 Series Hardware Installation Guide
374
Installing the Cisco NCS 2015 Door and Other Modules
NTP-L61 Installing Deep Door of NCS 2015 Shelf
