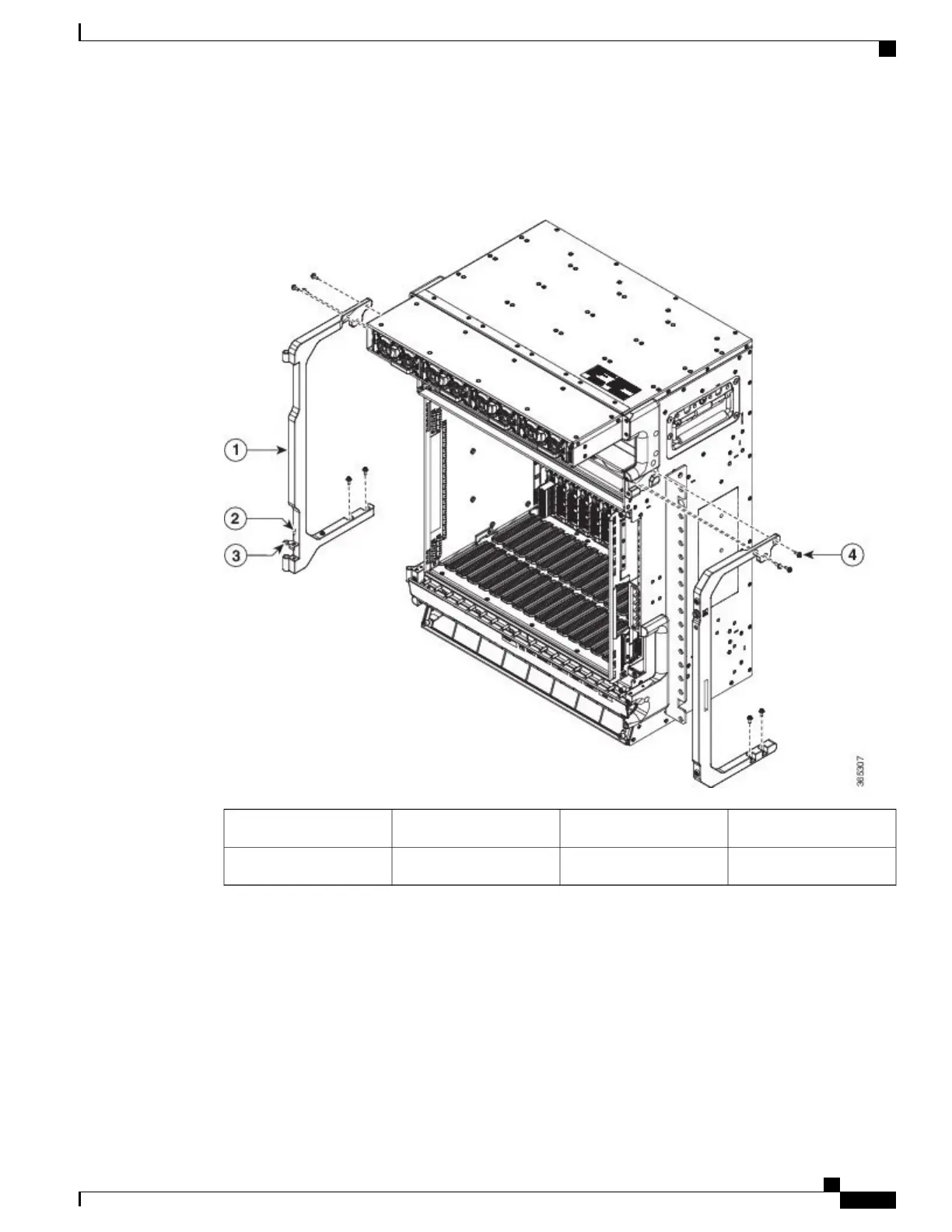

Figure 215: Installing the Deep Door Bracket of NCS 2015 AC Shelf
M3 x 8 mm screw2Deep door bracket1
M3 x 10 mm screw4Safety washer3
Step 5
Pull the top hinge pin down on the deep door. (See the figures below.)
The bottom hinge pin is
fixed.
Note
Step 6
Align the deep door hinges with the bracket hinges. (See the figures below.)
Step 7
Slide the bottom hinge pin into the bracket hinge and move the top hinge pin in the upward direction.
Cisco NCS 2000 Series Hardware Installation Guide
375
Installing the Cisco NCS 2015 Door and Other Modules
NTP-L61 Installing Deep Door of NCS 2015 Shelf
