Procedure
Step 1
Install the ANSI 23-inch adapter plates on the horizontal air plenum.
Step 2
Align the screws to fix the adapter plates to the shelf. Insert the screws and tighten them to a torque value of
11.5 in-lb (1.3 N-m).

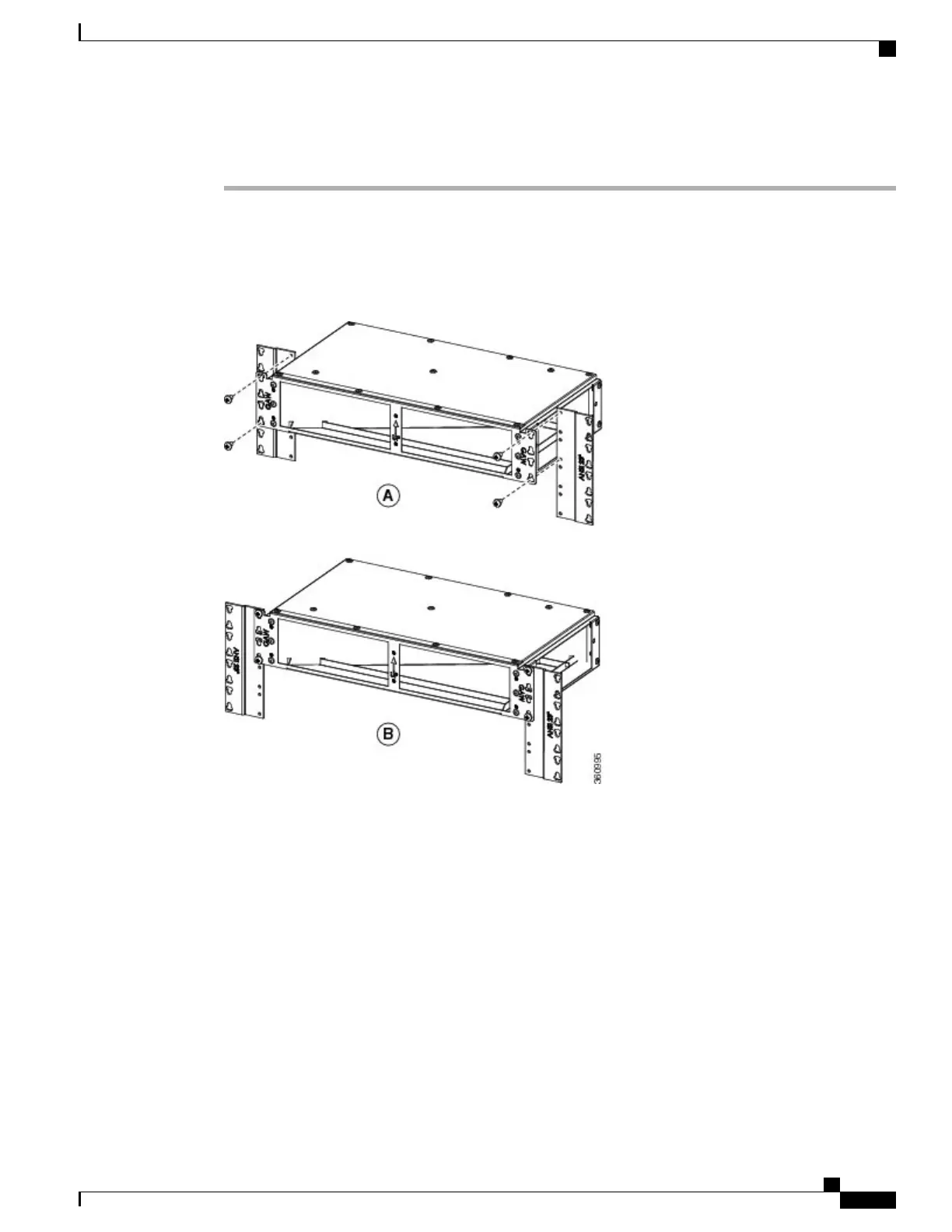

Figure 18: Installing the adapter plates on the horizontal air plenum
Cisco NCS 2000 Series Hardware Installation Guide
35
Installing the Air Flow Regulator
DLP-L69 Installing Air Plenum in NCS 2002 Shelf for ANSI 23-inch Configuration
