Step 5
Align the screw holes on the left back air deflector with the screw holes on the chassis.
Step 6
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m). See Diagram 2 of the following
figure.
Step 7
Place the air deflector covers on the front and rear ends of the chassis as shown in Diagram 3 of the following
figure.
Step 8
Align the screw holes on the air deflector covers with the screw holes on the chassis.
Step 9
Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m). See Diagram 4 of the following
figure.

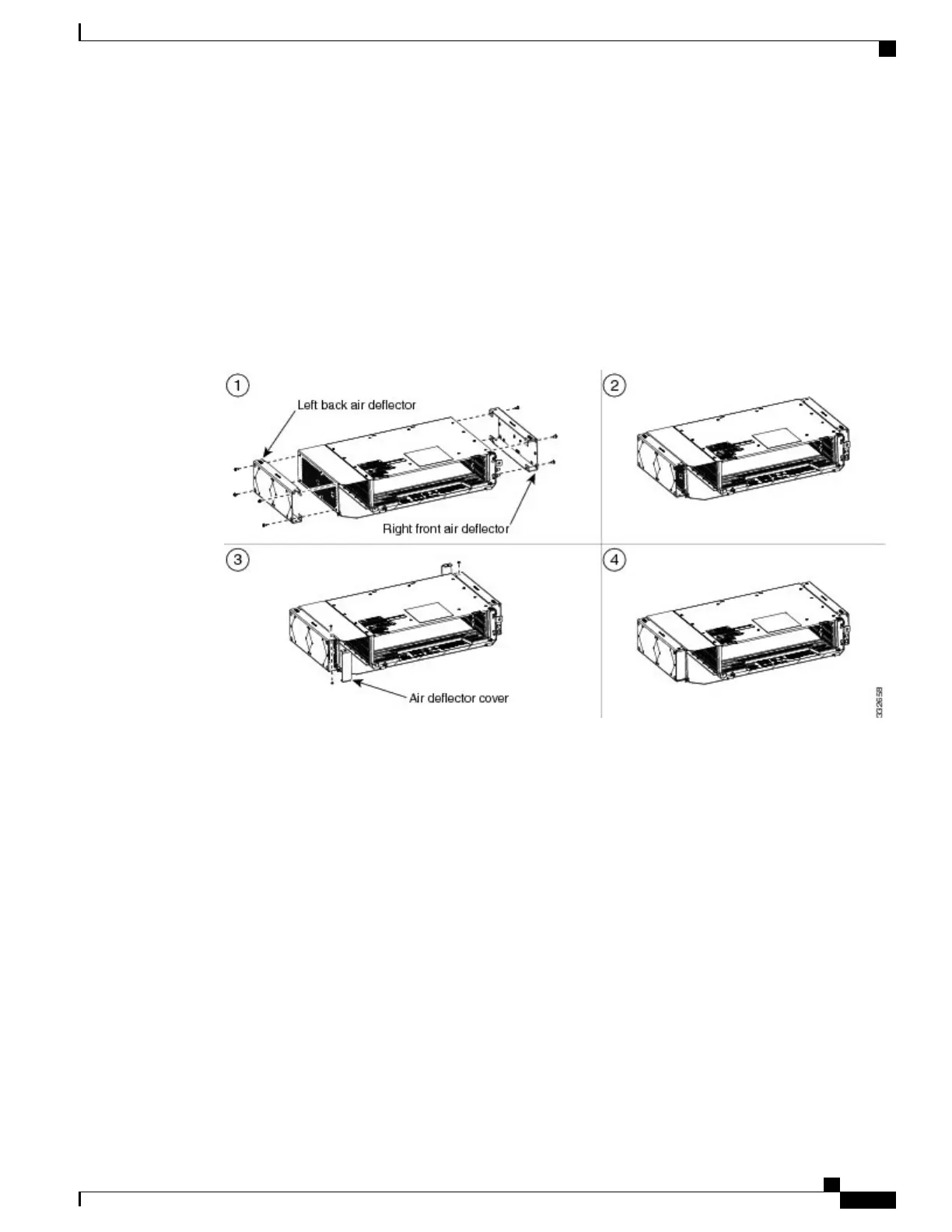

Figure 35: Mounting the Air Deflectors (Front-to-Back) on the NCS 2002 Shelf for ETSI Rack Configuration
Cisco NCS 2000 Series Hardware Installation Guide
57
Mounting the Cisco NCS 2002 Brackets
DLP-L40 Mounting the Bracket with Air Deflectors (Front-to-Back) on the NCS 2002 Shelf for ETSI Rack Configuration
