Alignment

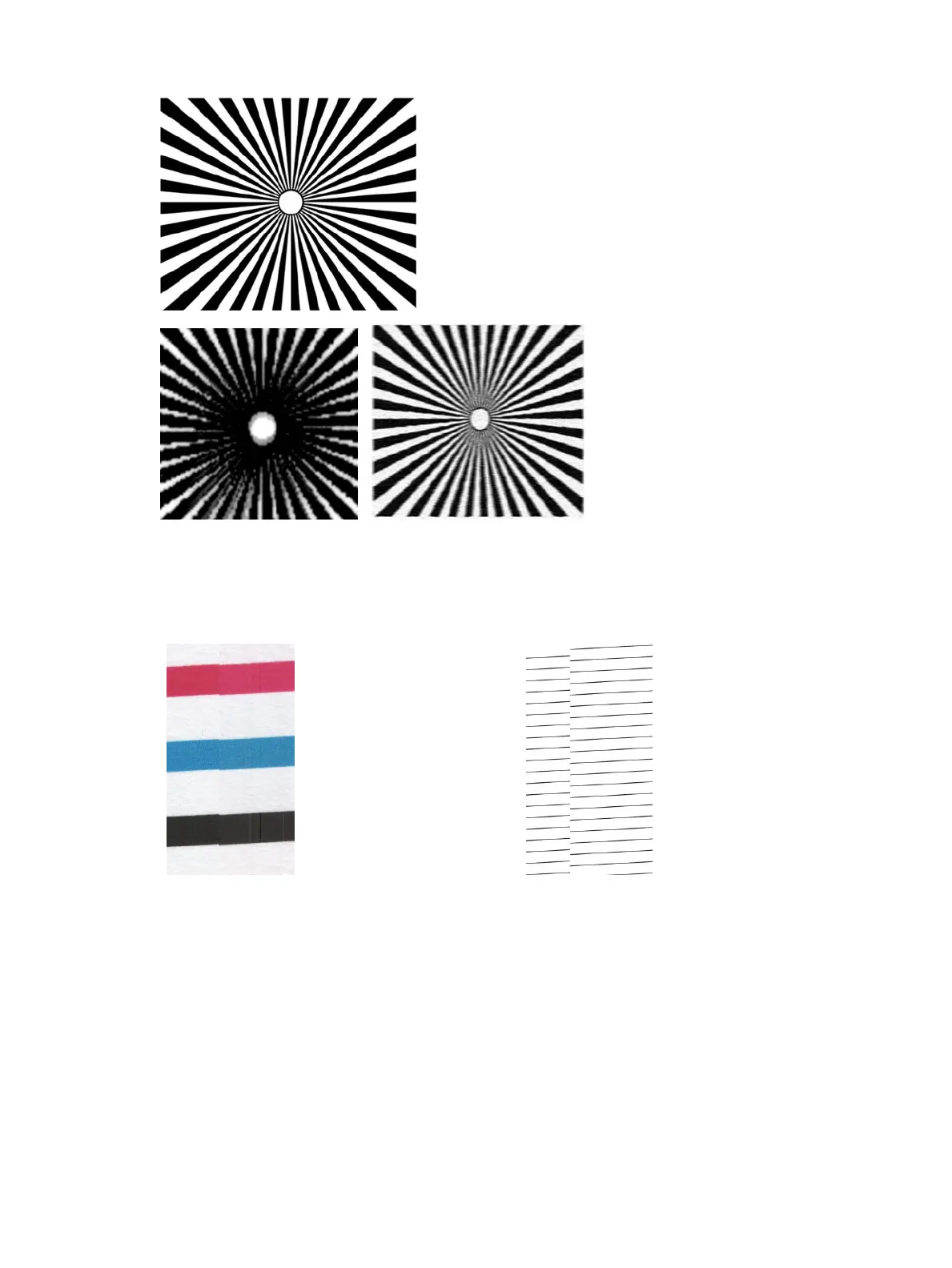

Looking at patterns D, K, and L, you may nd problems with the printer’s printhead alignment, which can
cause defects such as the following.
Additionally, misalignment problems can be seen in patterns D and G in the form of color fringing (which is
exaggerated below, on the right). That is, the limits between two strong colors are not well dened or a third
color appears between them.
ENWW The scanner diagnostic plot 169
