Below the two main systems mentioned are described.

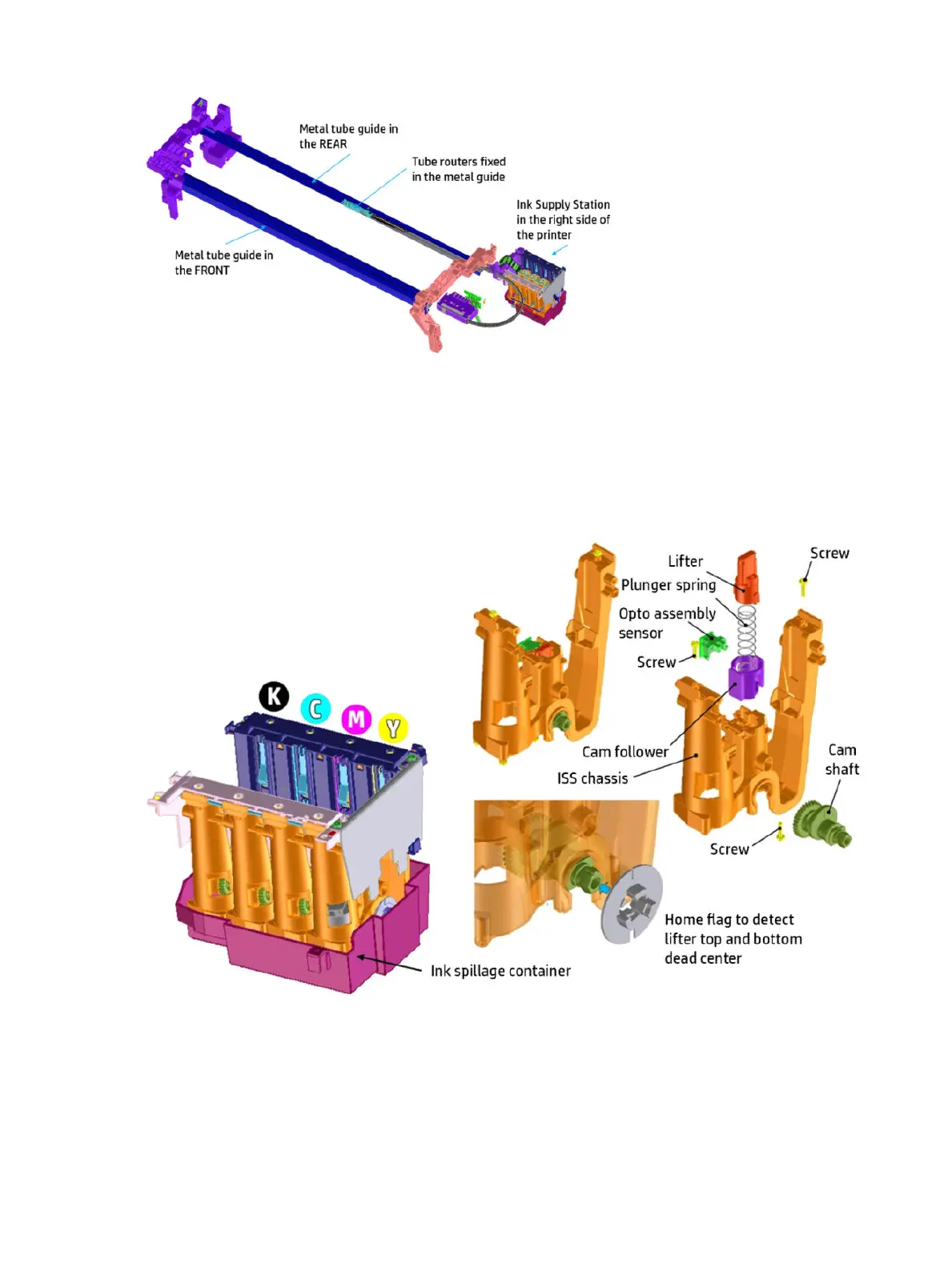

Ink Supply Station (ISS)
The Ink Supply Station (ISS) pumps ink from the supplies to tubes in order to print. The ISS acumen sensors
identify HP ink supplies.
The ISS is mounted on the right of the printer so as to pump ink from the supplies to the PHA. Several of their
main components are carry-over parts from other products.
The ISS is designed to admit dierent supply types: Mirasis (130 cc), Mirasis Plus (300 cc) and Oasis (69 cc),
with four dierent colors; Cyan (C), Magenta (M), Yellow (Y), Black (PK).
The Printer Bundle Board that controls the Primer, Ink Door Sensor, PHA Cover Sensor, Pick motor, ISS motor,
ISS acumen sensor, ISS home ag encoder and Service Station motor is located just next to the ISS. The cables
must be routed correctly (by means of wire saddles xed in the Printer Bundle Board support), to prevent
interference and wire pinching whenever the Right Cover is assembled.
16 Chapter 1 Printer fundamentals ENWW
