Diverter SV F9A30-67040
Removal
Tools: Screwdriver Torx 10 and pliers
1. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
2. Remove the Scanner Top Cover, see Scanner Top Cover F9A30-67015 on page 423.
3. Remove the Rear Cover, see Rear Cover (MFP only) on page 464.

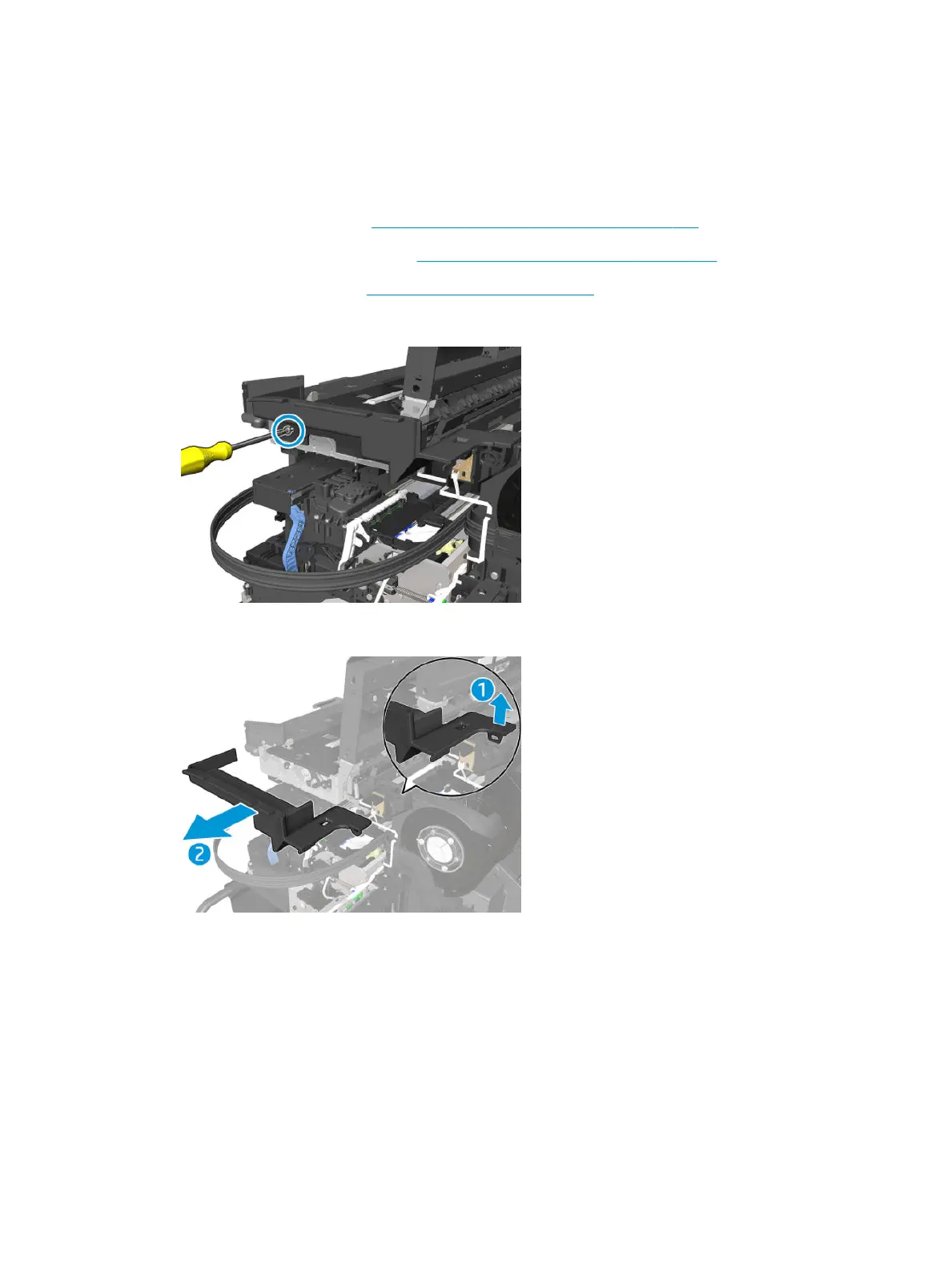

4. Remove one screw.
5. Remove the Top Right Cover.
