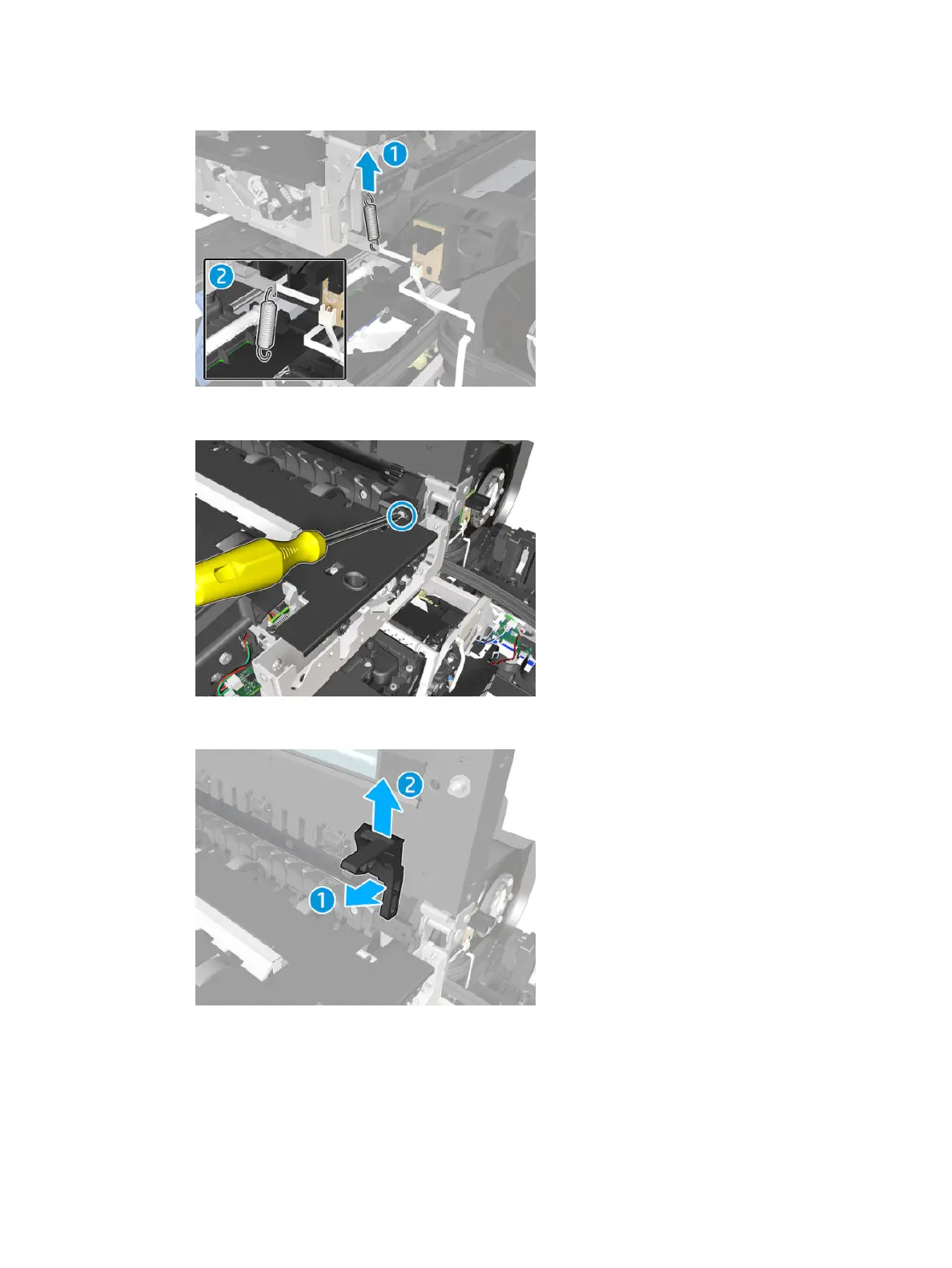

6. Detach the spring from the top and leave it hanging there.
7. Remove one screw.
8. Remove the End Plate Right Diverter, it has two positioning pins.
ENWW Diverter SV F9A30-67040 517
