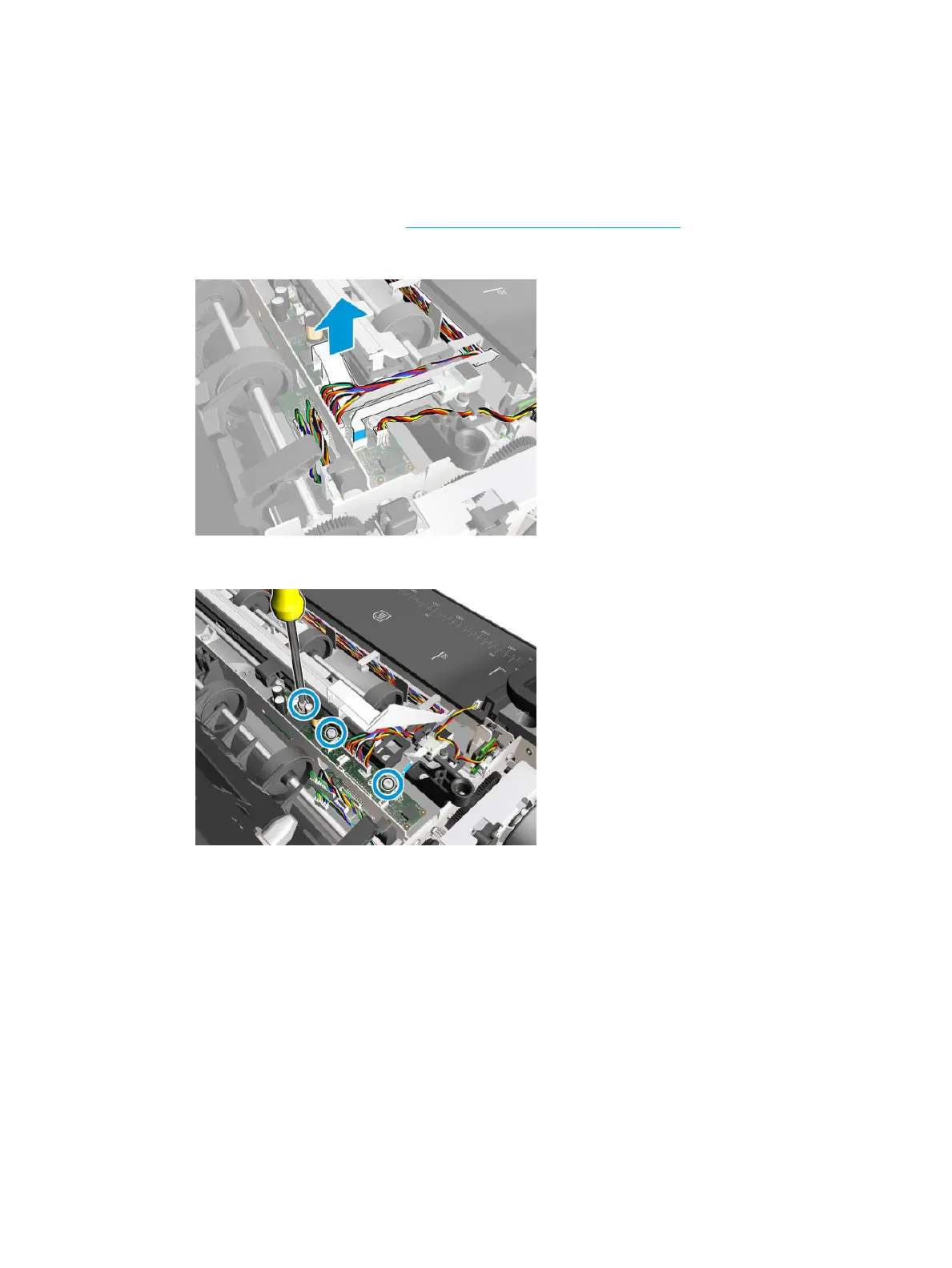

Scan Bundle Board F9A30-67029
Removal
T
ools:
Scre
wdriver T
orx 10
1.
Remov
e the Bott
om Plat
en, see
Bott
om Plat
en F9A30-67042 on page 431
.
2.
Disconnect al
l the cables.
3.
Remov
e the three scr
ews.
ENWW
Scan Bundle Boar
d F9A30-67029
433
