Multi-Sheet Tray Sensor Assembly
Removal
1. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
2. Remove the Back Cover, see Back Cover on page 275.

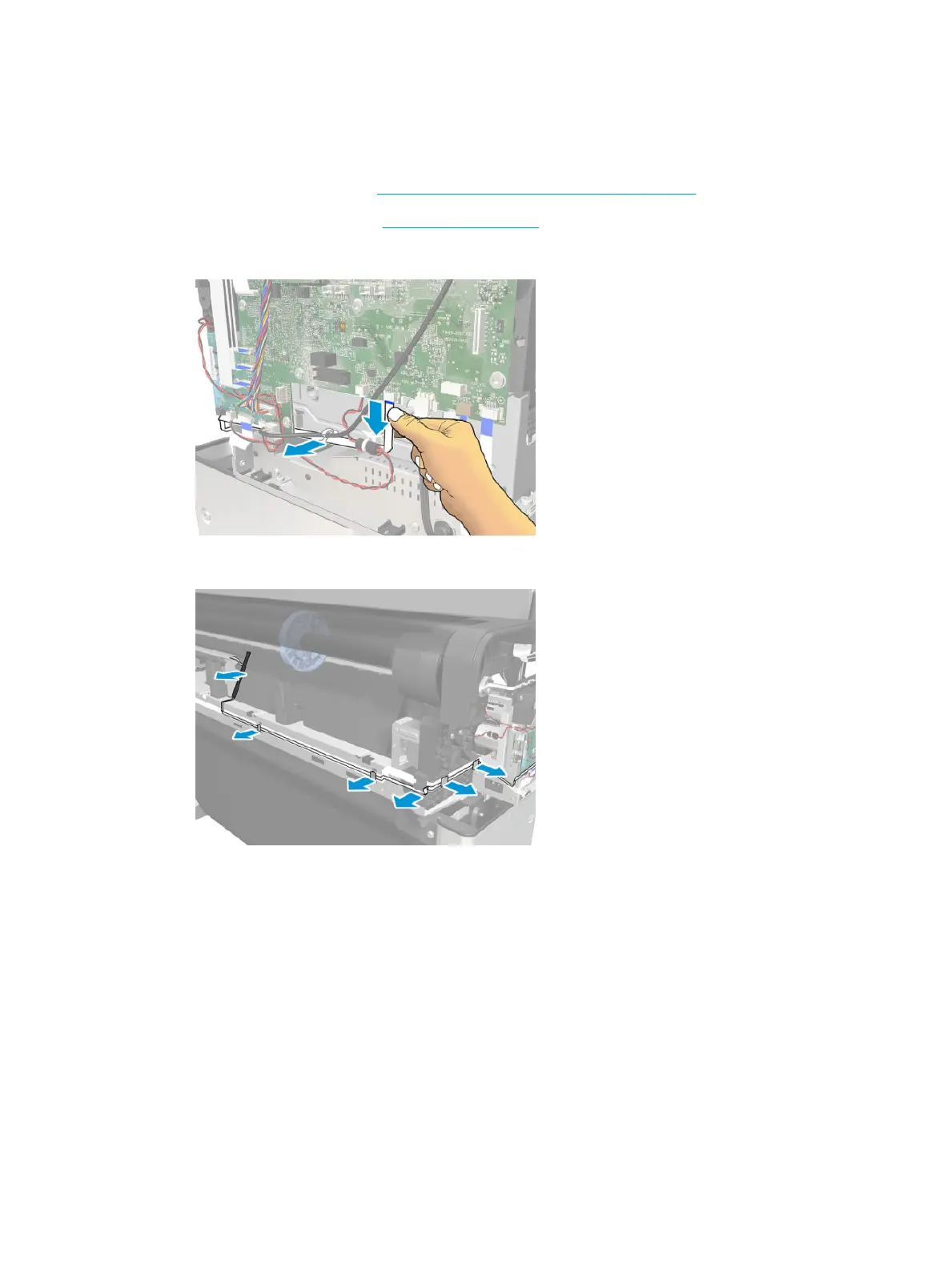

3. Disconnect the cable from the main PCA.
4. Unroute the cable.
ENWW Multi-Sheet Tray Sensor Assembly 385
To Next Page
