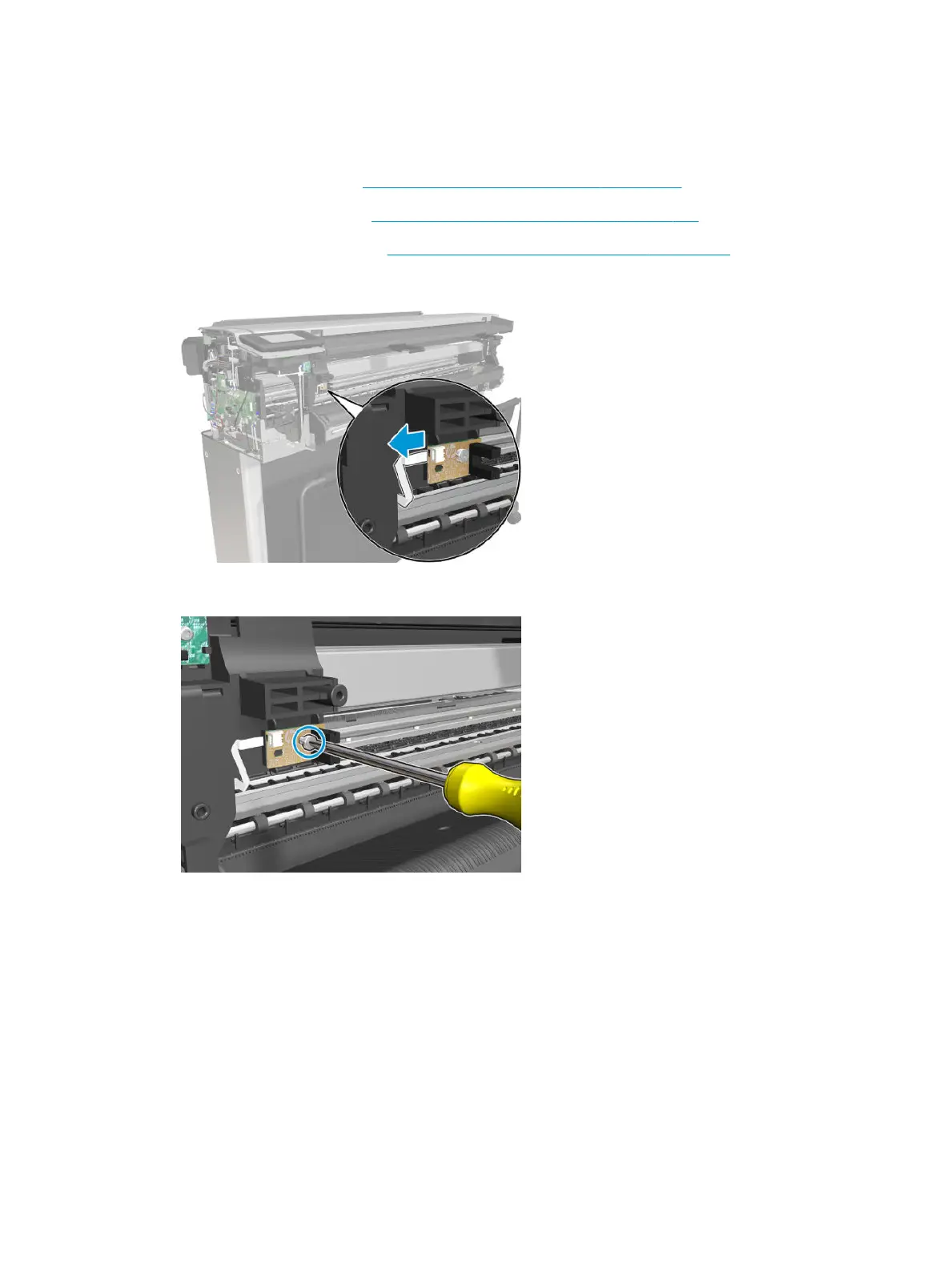

Front Window Sensor (HP DesignJet T830 MFP only)
Removal
1. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
2. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
3. Remove the Front Window, see Front Window MFP SV Kit F9A30-67013 on page 502.
4. Disconnect the FFC cable from the Front Window Sensor PCA.
5. Remove one screw.
478 Chapter 5 Removal and installation ENWW
