HP DesignJet T730

Top Cover Button Latch F9A30-67016 (HP DesignJet T830 MFP
only)

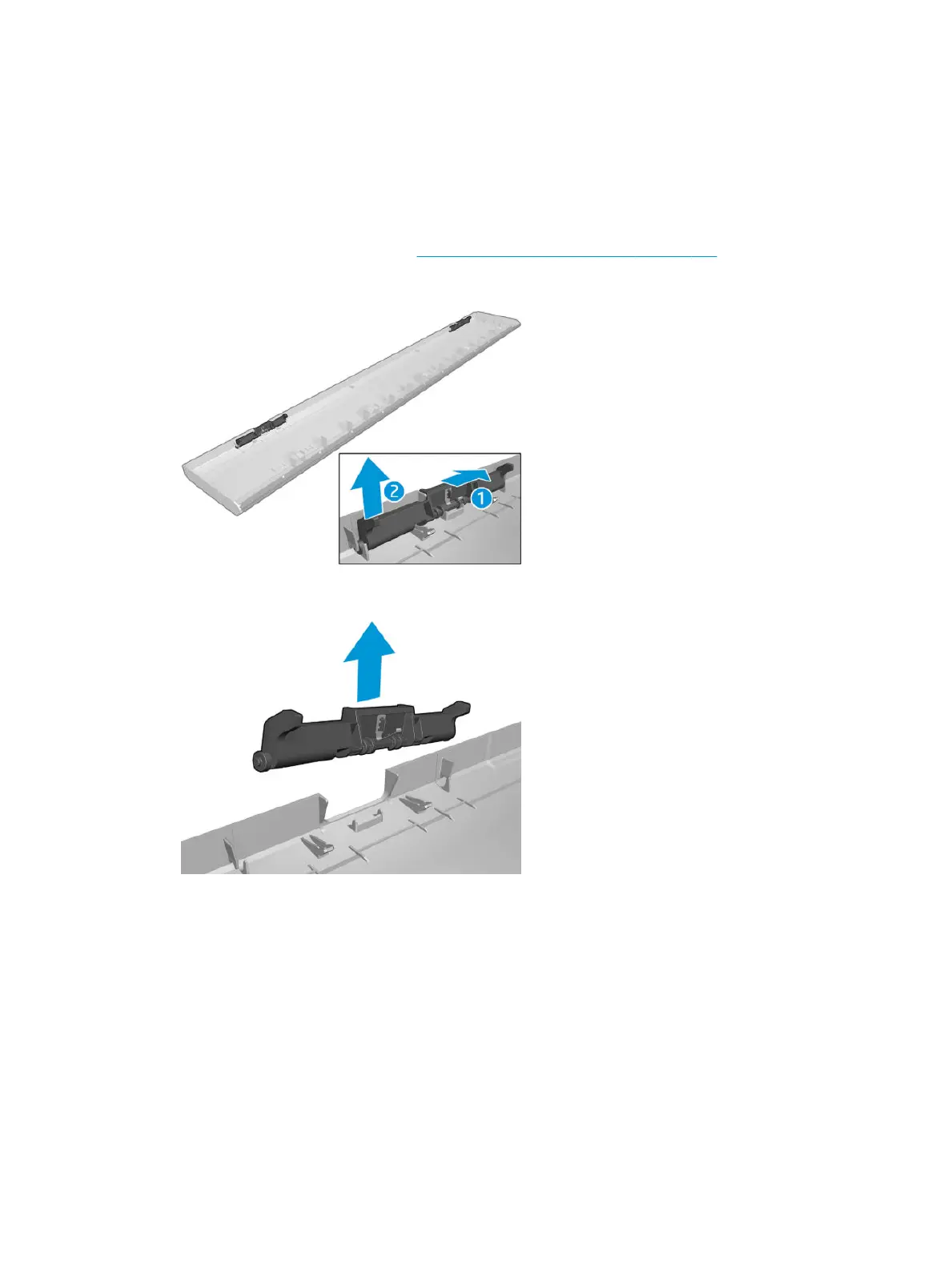

Removal
Tools: Screwdriver Torx 8
1. Remove the Scanner Top Cover, see Scanner Top Cover F9A30-67015 on page 423.
2. Unclip the Top Cover Button Latch.
3. Remove the Top Cover Button Latch.
Installation
1. Before installation, check the latches are working properly.
2. Reverse the removal process.
430 Chapter 5 Removal and installation ENWW
