Out-Of-Paper Sensor Cable
Removal
1. Remove the Front Cover, see Front Cover on page 261.
2. Remove the Cutter Door, see Cutter Door F9A30-67006 on page 378.
3. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
4. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
5. Remove the Back Cover, see Back Cover on page 275.
6. Remove the Out-Of-Paper Sensor, see Out-Of-Paper Sensor on page 388.

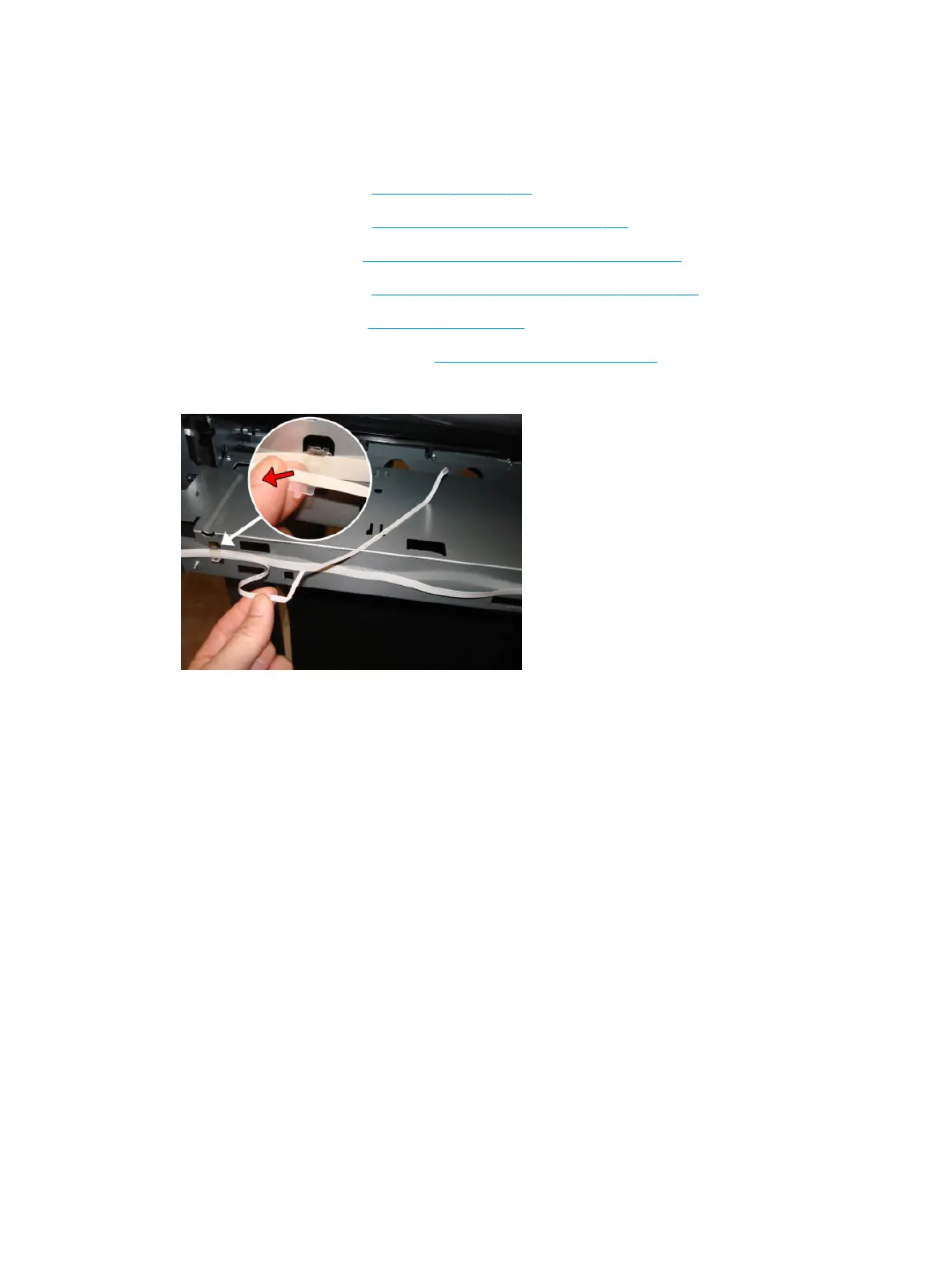

7. Unclip the locator FFC.
392 Chapter 5 Removal and installation ENWW
