Service Station

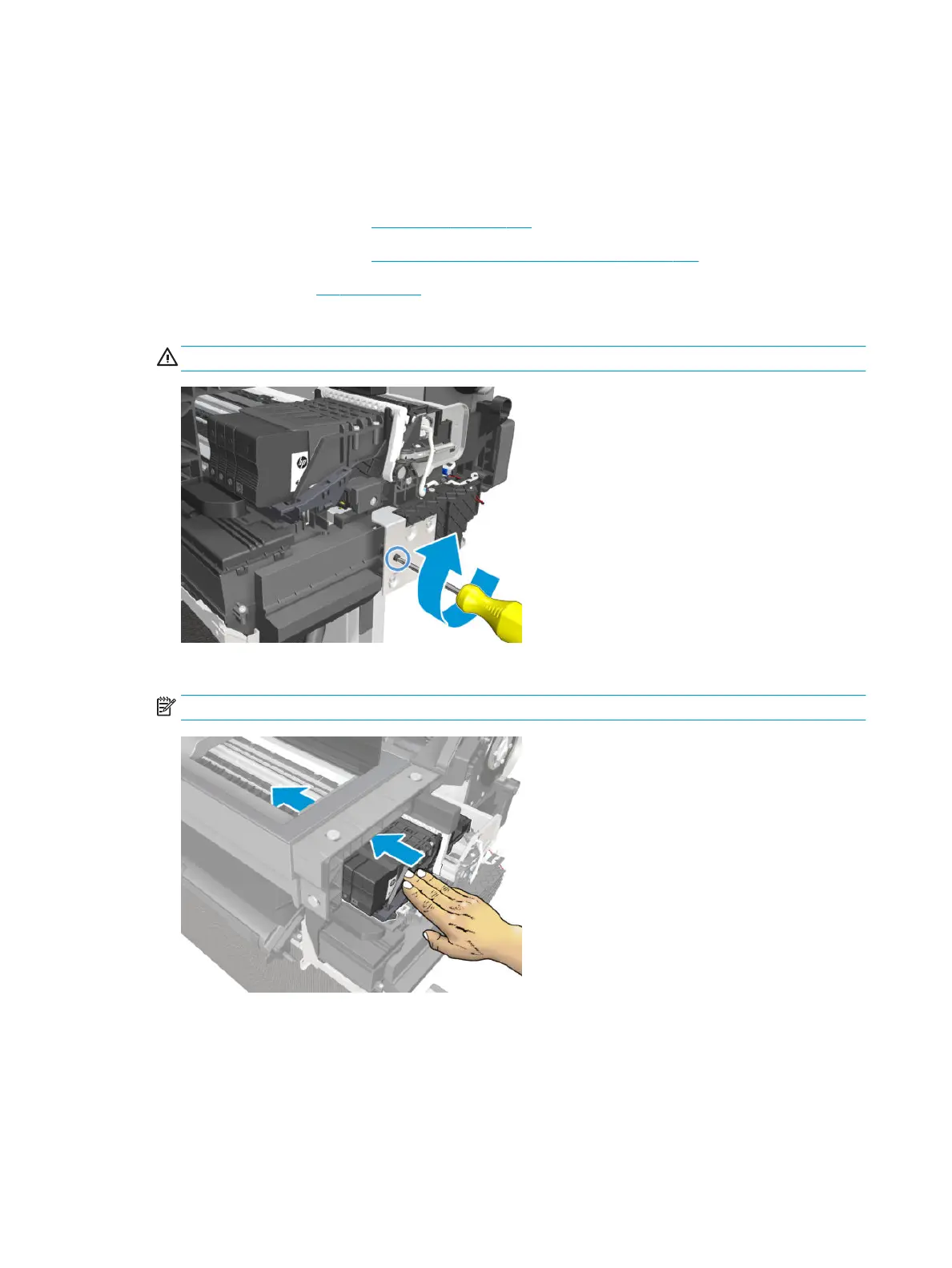

Removal
1. Switch o the printer and remove the power cable.
2. Remove the Front Cover, see Front Cover on page 261.
3. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
4. Remove the ISS, see ISS on page 499.
5. Uncap the Carriage.
CAUTION: Avoid touching the Encoder Disk by mistake.
6. Move the Carriage to the left.
NOTE: Image shown is from another product, and for reference only.
334 Chapter 5 Removal and installation ENWW
