HP DesignJet T730

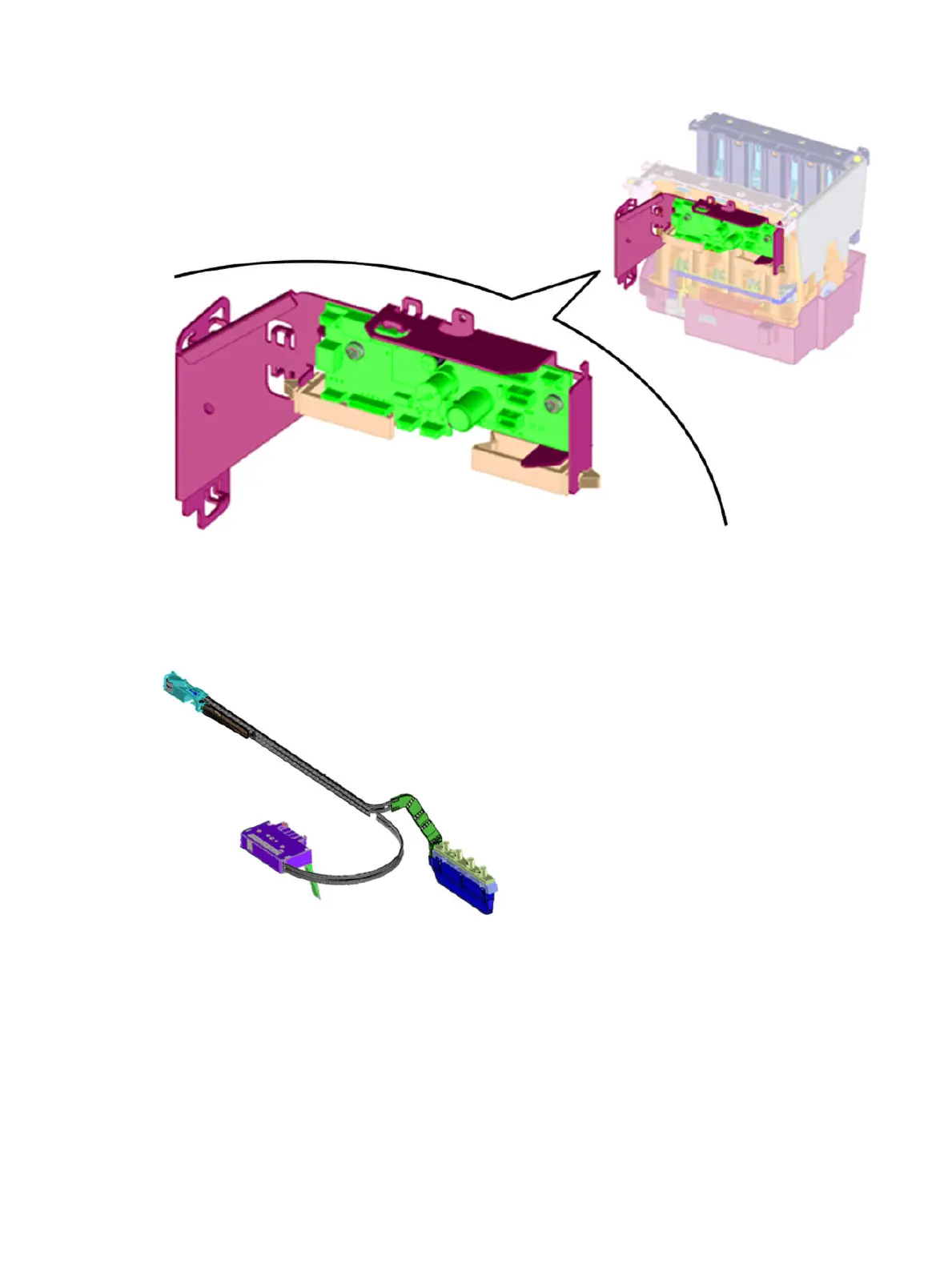

Ink Tubes (RIDS)
The tubes connect the Ink Supply Station with the printhead and ensure ink is transferred from the supplies to
the printhead. The tubes are independent of the Trailing Cables.
The PHA connector is not connected to the carriage, but a oating connector and the septums come pre-
lubricated. Good lubrication is essential for easy insertion in the printhead.
ENWW Subsystems 17
