Lower Pinch Assembly with Mirror F9A30-67033 (HP DesignJet
T830 MFP only)
Removal

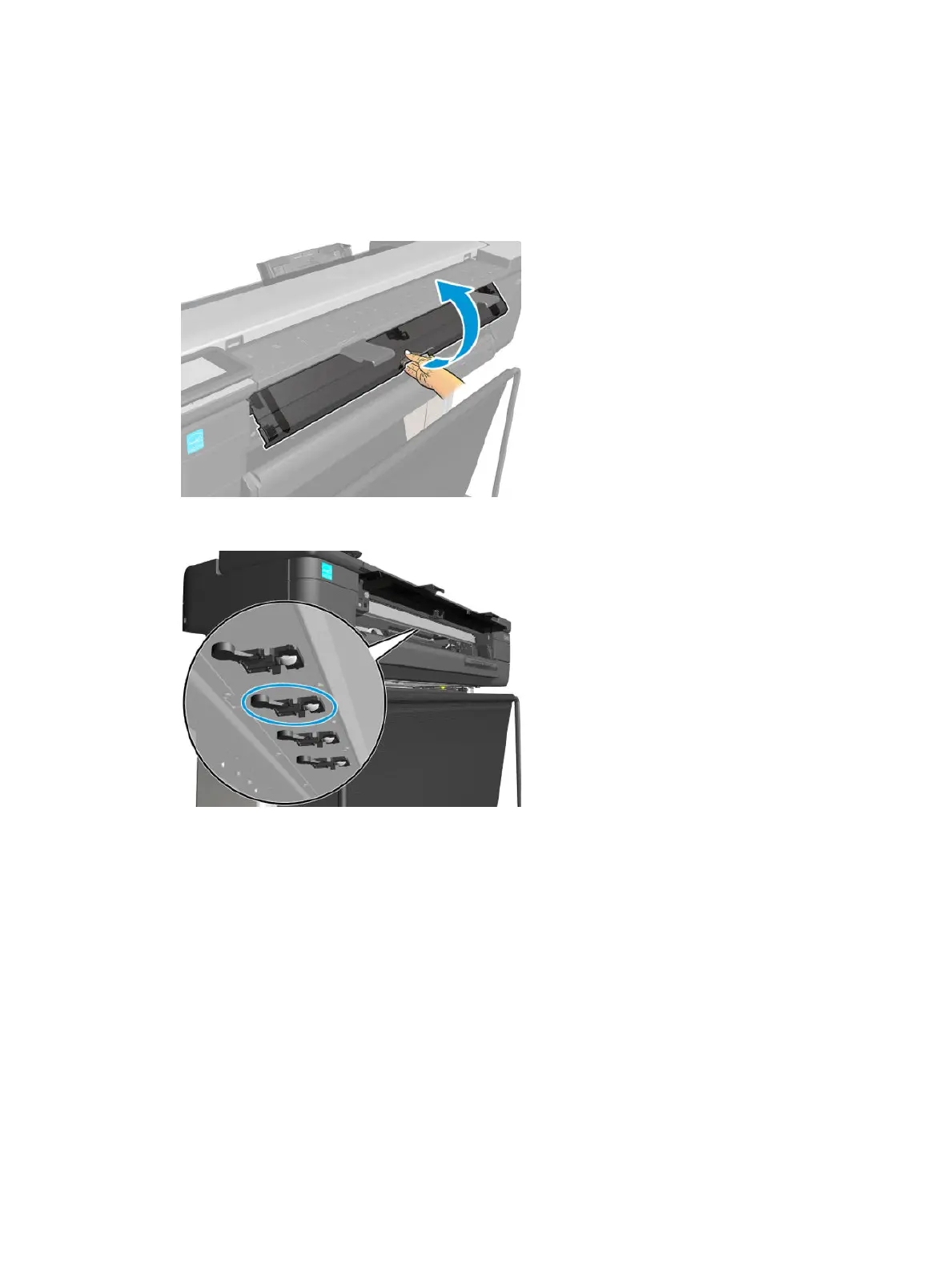

1. Open the Front Window.
2. Locate the Lower Pinch Assembly.
492 Chapter 5 Removal and installation ENWW
