Input platen SV F9A30-67039 (HP DesignJet T830 MFP only)
Removal
Tools: Screwdriver Torx 10
1. Remove the Front Cover, see Front Cover on page 261.
2. Remove the Right Cover, see Right Cover MFP SV Kit F9A30-67011 on page 264.
3. Remove the Left Cover, see Left Cover MFP SV Kit F9A30-67012 on page 268.
4. Remove the Front Panel and Left Trim, see Front Panel and Left Trim F9A30-67043 on page 526.
5. Remove the two Refeed Preventers, see Refeed Preventer on page 504.
6. Remove the Front Window, see Front Window MFP SV Kit F9A30-67013 on page 502.
7. Remove the Botton Platen, see Bottom Platen F9A30-67042 on page 431.

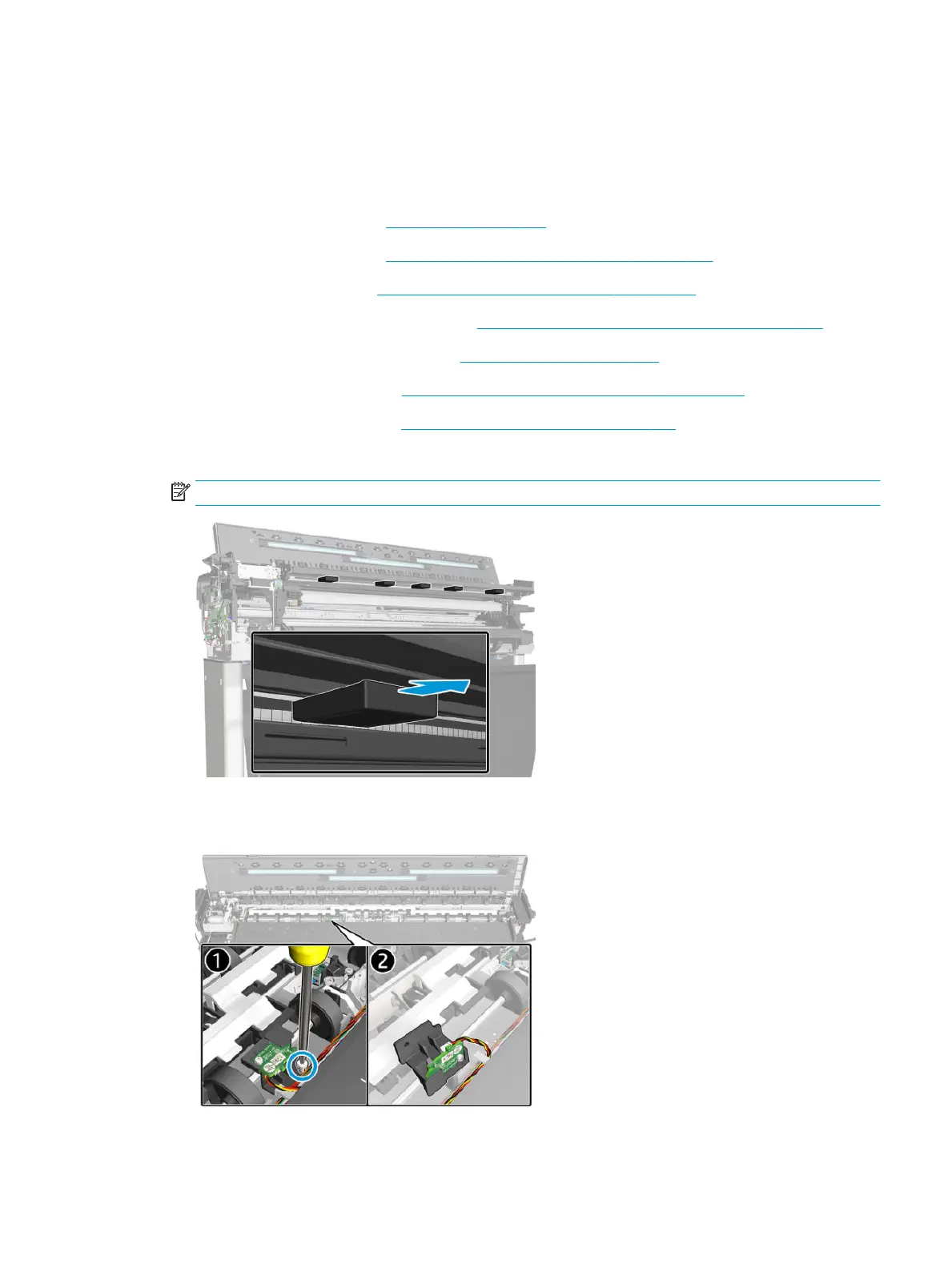

8. Slide out the ve Guide Paper Output. They are hard to slide out.
NOTE: They do not need to be fully removed.
9. Remove one screw from the Lid Magnetic Sensor, and keep it along with the cable and holder, in a save
place.
ENWW Input platen SV F9A30-67039 (HP DesignJet T830 MFP only) 513
