Calibration Surface F9A30-67027

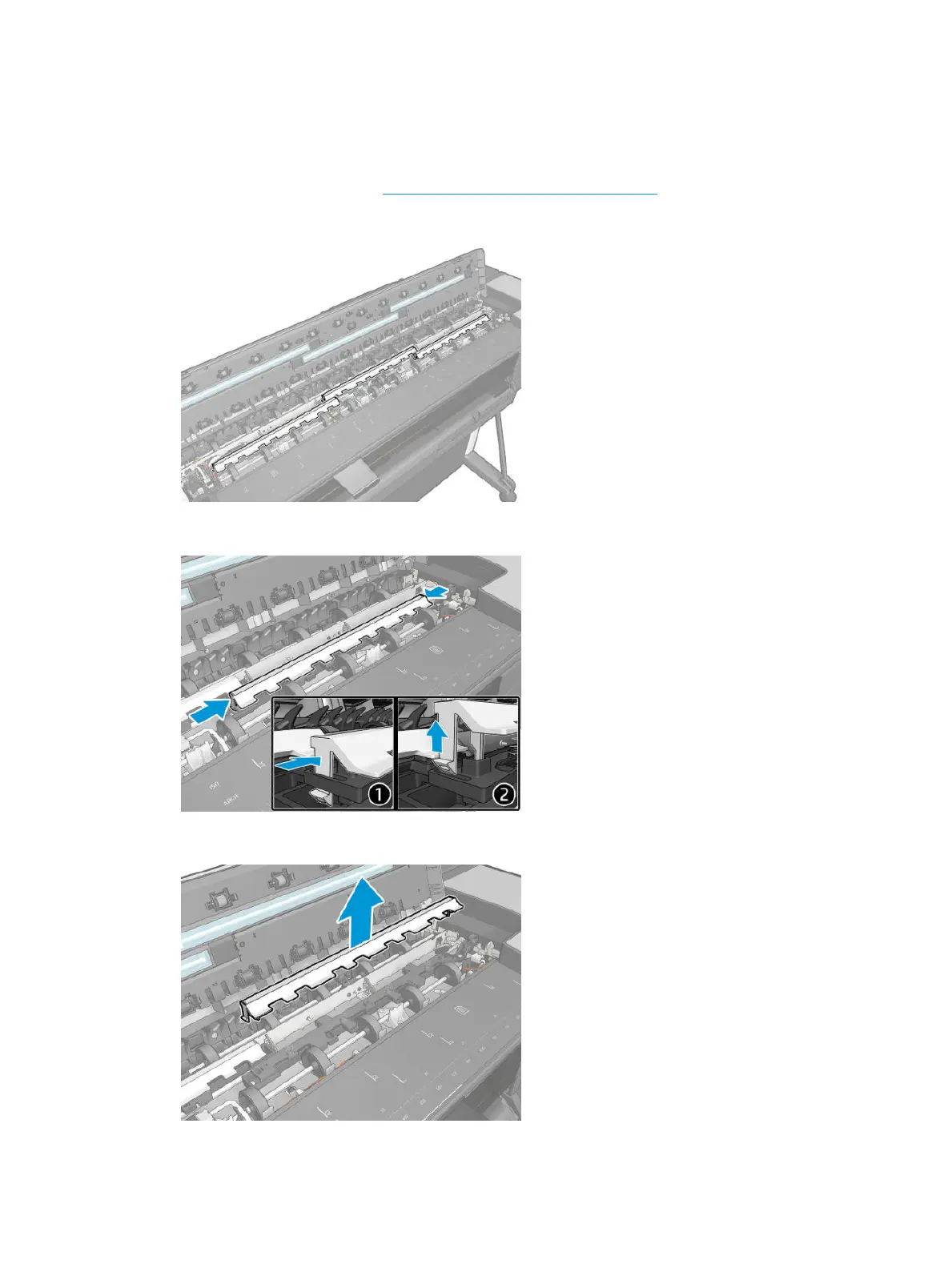

Removal
1. Remove the Bottom Plate, see Bottom Platen F9A30-67042 on page 431.
2. Note the location of the 3 Calibration Surfaces.
3. Press both sides to unclip one.
4. Remove the Calibration Surface.
484 Chapter 5 Removal and installation ENWW
